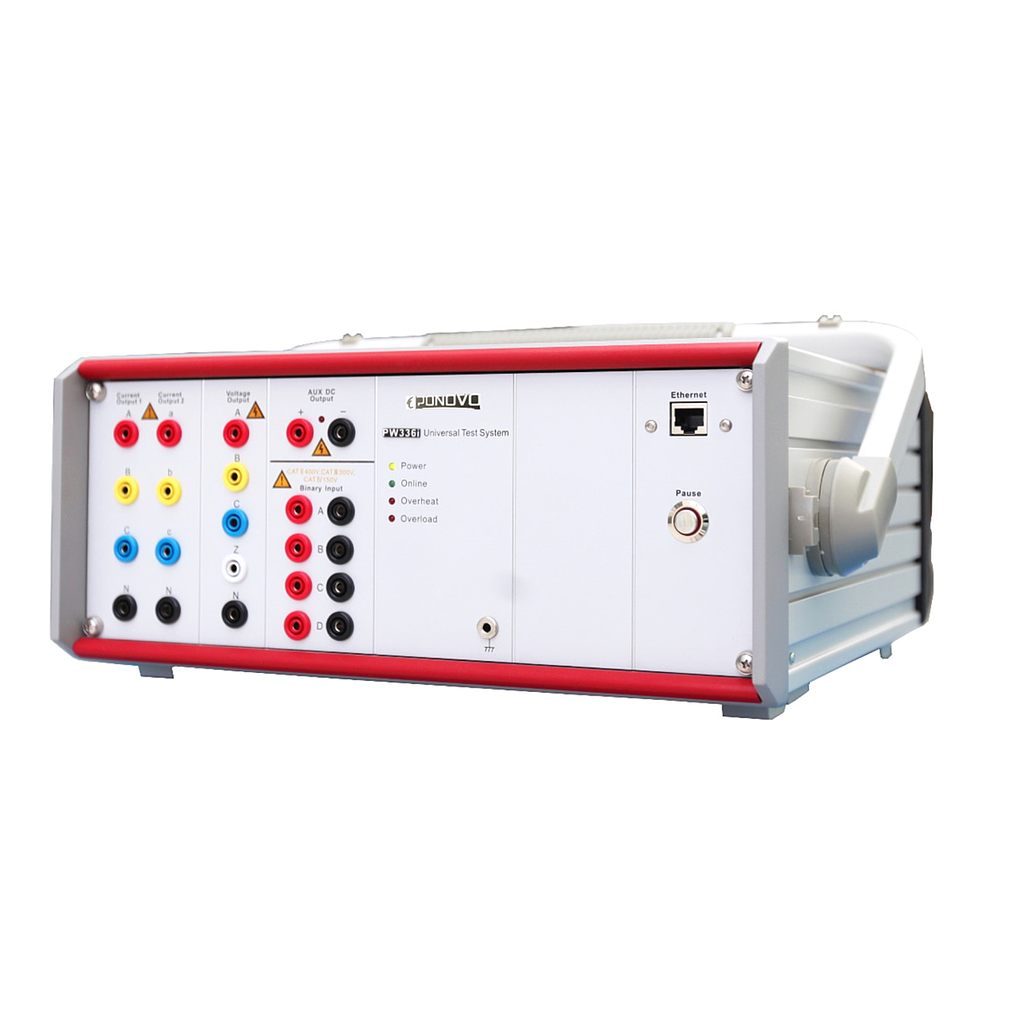

Ponovo PW336i Protection Relay Tester

Voltage generators

Setting range

4‐phase ac(L‐N): 4×0~150V

1‐phase ac(L‐L): 1×0~300V

dc (L‐N): 4×±0~150V

dc (L‐L): 1×±0~300V

Power

4‐phase ac(L‐N): 4×45VA at 150V

3‐phase ac(L‐N): 3×60VA at 150V

1‐phase ac(L‐L): 1 × 100VA at 300V

dc (L‐N): 4×40W at 150 V

Accuracy: error < 0.08 % rd.+0.02 % rg. guar./ error < 0.04 % rd.+0.01 % rg. typ.

Ranges: 150V

Resolution: 5mV for 150Vac

Distortion: < 0.05 % typ., (< 0.1 % guar.)

Current generators

Setting range

6‐phase ac(L‐N): 6×0~15A

3‐phase ac(2L‐N): 3×0~30A

1‐phase ac(6L‐N): 1×0~90A

dc (L‐N): 6×±0~15A

dc (6L‐N): 1×±0~90A

Power

6‐phase ac(L‐N): 6×150VA at 15A

3‐phase ac(2L‐N): 3×240VA at 30A

1‐phase ac(6L‐N): 1×450VA at 90A

1‐phase ac(L‐L): 1×450VA at 30A

Max compliance

Voltage (L‐N)(L‐L): 15Vpk/30Vpk

dc (L‐N): 6×100W at 15A

dc (6L‐N): 1×480W at 90A

Accuracy: error < 0.15 % rd.+0.05 % rg. guar./ error < 0.05 % rd.+0.02 % rg. typ.

Ranges: 15A or 30A

Resolution: 1mA

Distortion: < 0.05 % typ., (< 0.1 % guar.)

Power supply

Nominal input voltage: 110~240Vac

Permissible input voltage: 90~260Vac

Nominal frequency: 50/60Hz

Permissible frequency: 45~65Hz

Operation temperature: 0~+50°C

Storage temperature: ‐25~+70°C

Relative humidity: 5~95% non‐condensing

Weight: 20kg

Dimensions (W x H x D): 360mm ×157mm×367mm

8 binary inputs, 4 binary outputs
