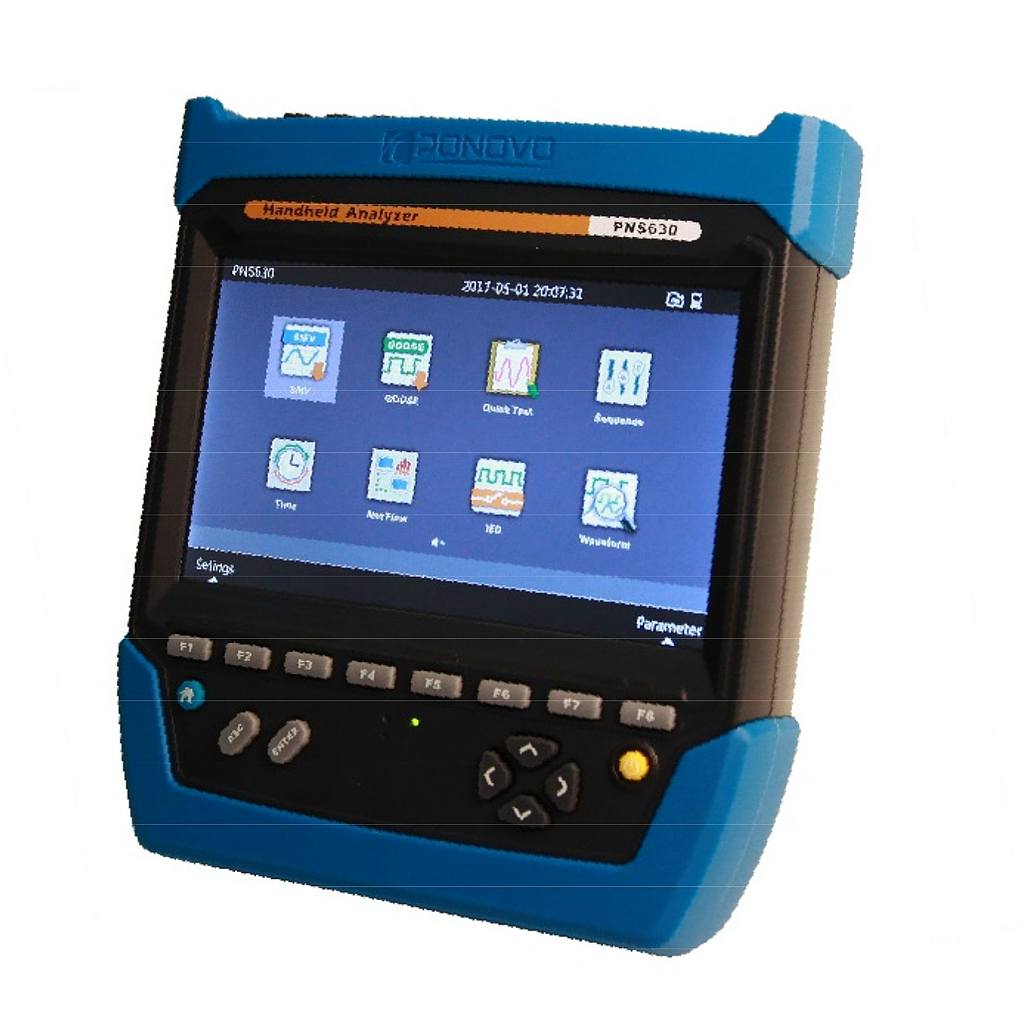

Ponovo PNS630 Hand-Held IEC61850 Network Analyzer

Interface

Optical Ethernet: 4×100Mbps optical Ethernet port receiving/sending 9‐2 message, GOOSE massage, 1588 (LC type, wavelength: 1310nm)

Optical Serial: 2 receiving ports for FT3, B‐code, PPS signal. 2 sending ports for FT3, B‐code (ST type, wavelength: 850nm, baud rate of 2.5M/5M/10M are supported).

Ethernet: 1100 Mbps Ethernet port, type: RJ‐45

Dry Contact: 1 pair dry contact inputs, 1 pair dry contact outputs

Micro SD: Micro SD used for recording and saving the waveform, pictures files and importing SCL configuration files

USB Device: Connect to PC as a memory device

Power Supply: Connect to the power adaptor

Operate Environment

Environment Temperature: ‐5 ~ +45°C

Storage Temperature: ‐25 ~ +70°C

Relative Humidity: 5%‐ 95%

Storage Humidity: ≤ 85%

Atmosphere Pressure: 86kPa‐106kPa

Power

In‐build battery group: 12.6V 4400mAh. Li‐ion battery group

Power Adaptor

Input: AC 100‐240V, 50/60Hz

Output: DC 15V, 1.66A

Charge Time: It takes 4‐6 hours for the battery to be charged.(LED off: charged; LED on: charging).

Safety Standard

Anti‐interference of ESD: GB/T 17626.2‐2006 grade4

Anti‐interference of RF EMF: GB/T 17626.3‐2006 grade3

Anti‐interference of EFT/B: GB/T 17626.3‐2006 grade4

Anti‐interference of PFMF: GB/T 17626.3‐2006 grade3

Dimensions and Weight

Dimensions: 190mm (W) x210mm (H) x64mm(D)

Weight: ≤1.35kg
