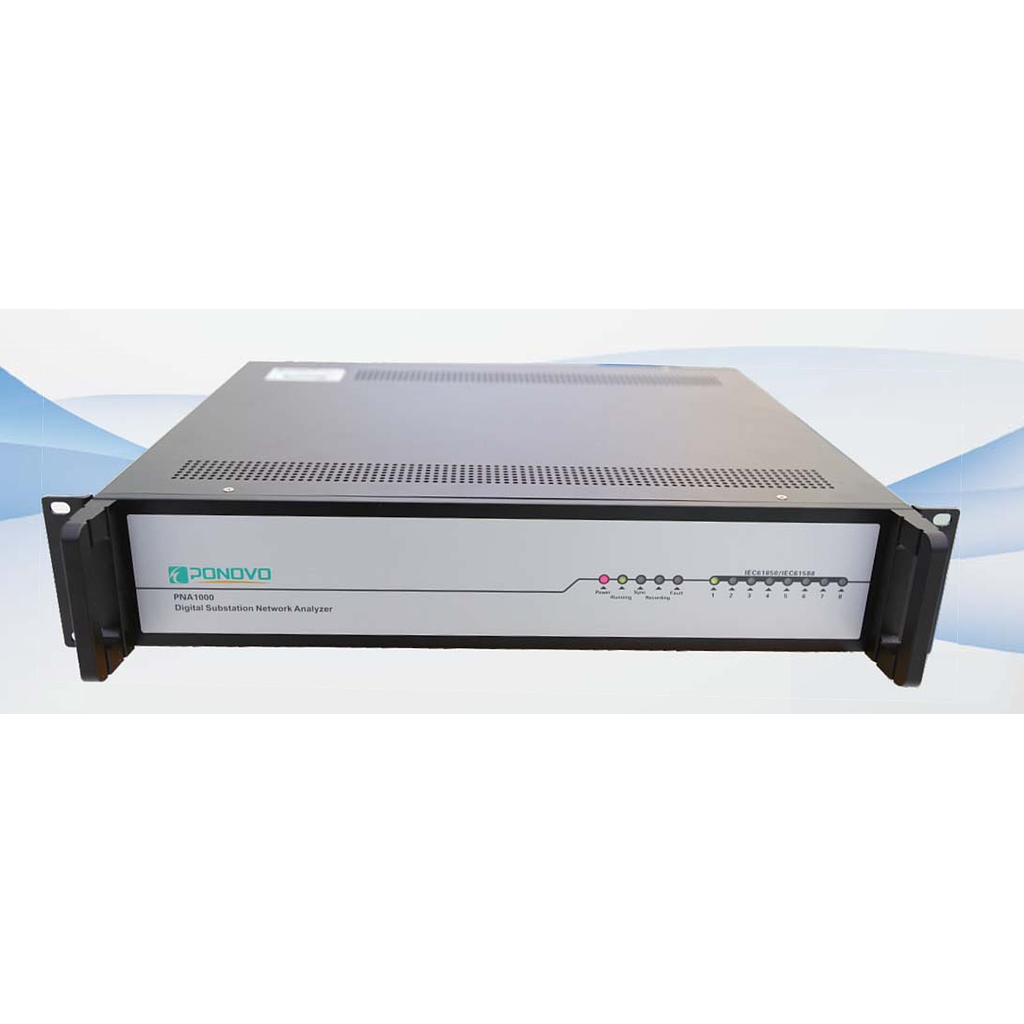

Ponovo PNA1000 IEC61850 Digital Substation Network Analyzer

Hardware: optional

Data access: ≥ 1100Mb/s

Power supply: AC: 220V or 110V (only one gear); DC: 220V or 110V (only one gear)

Ethernet port:

2 RJ45 Ethernet ports (Gbps and 1000Mbps are available)

8 pairs of Lc ports, supporting 9-2, GOOSE, MMS and PTP messages

Communication port: 1 RJ45 Ethernet port

Synchronization interface: 1 IRIG-B port (ST)

Synchronization accuracy: <700ns

24 hours accuracy: <130ms

Potential free output: 4

Message access capability: 100Ms/s/port, complete record data with total flow 1100Mb/s and 0% package loss rate

Message storage capacity: based on the number of MU

Indictor lights: power,running, sync, recording, fault
