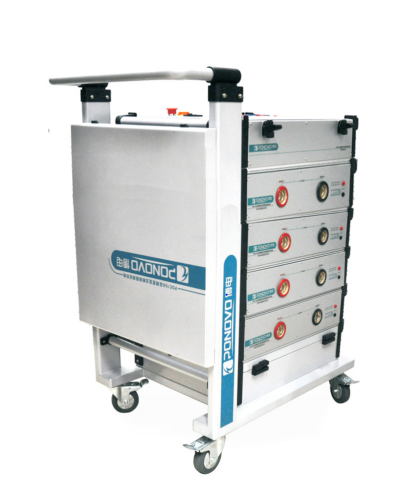

Ponovo PDC20k High DC Primary Current Injection Test Set

Power supply: Single phase 220VAC/50Hz, range ‐10%~+10%

Power supply input power: <3KVA

Output voltage range: 0~5V

DC Current Output range: 0A~20000A

Current output options: 0A~5000A, 0A~10000A, 0A~15000A, 0A~20000A

Load capacity:

20000A - 500mS

15000A - 1 second

10000A - 2 second

5000A - 8 second

Control Unit

Quantity: 1

Weight: 19.45kg

Dimension: 760×150×570mm(W×H×D)

Display screen: 4.8‐inch LCD screen with high brightness

Local keypad: Operating local software

1 USB Port

DC Current Output Unit

Quantity: 4

Weight: 27.8kg

Dimension: 760×140×570mm(W×H×D)

Current output: 5000A/unit

Portable Cart

Quantity: 1

Weight: 30kg

Dimension: 850×1020×600mm(W×H×D)

Characteristic: Contains four universal wheels and a storage box for cables

Binary inputs

Number: 2 pairs of independent inputs

Input characteristics: Dry contact or with voltage(30V~250V), automatic polarity recognition

Accuracy of timing: ±1ms(0.001~1s); ±0.1%(1~999.999s)

Binary outputs

Number: 1 pair

Contact rating: 250V DC/0.5A, 250V AC/8A

Environmental conditions

Operation temperature: 0~+50℃

Storage temperature: ‐25~+70℃

Relative humidity: 5~95% non ‐ condensing

Atmospheric pressure: 86kPa ~ 106kPa

Protection: IP22
