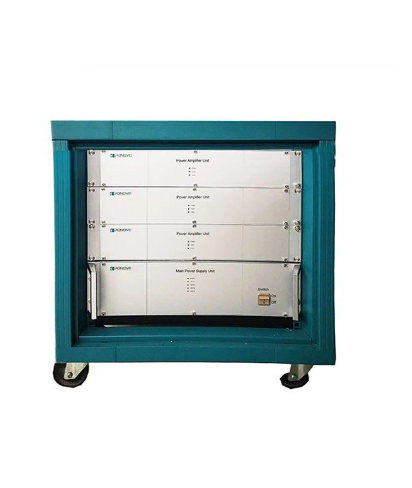

Ponovo PAV800 Four-Quadrant Power Amplifier

Voltage amplifier – AC output

Voltage output: 3×240V AC

Control: Independent control of amplitude, frequency and phase angle

Accuracy: ±10mV(0.2V‐10V); ±0.1%(10V‐240V)

Resolution: 1mV(0.2V‐10V); 10mV(10V‐240V)

Max. output power: 880VA (single phase output 220V); 2400VA (three phase output 220V at the same time, angle difference 120 degree)

Gain: 40V/V

Signal range: 0~±6V RMS (±8.5Vpek)

Voltage rising/dropping time: <20us

THD%: ≤0.5%(10V‐240V)

Frequency range: 10Hz‐1KHz

Amplitude‐frequency characteristics: ≤±0.1%~±0.5%(10Hz‐1KHz)

Output time: Continuous under rated output

Max sink power: 30% rated output power

Protection: Overload, distortion, short circuit, overheat detection and alarm automatically

Voltage amplifier – DC output

Voltage output: 3×340V DC

Accuracy: ±50mV(0.5V‐10V); ±0.5%(10V‐340V)

Resolution: 1mV(0.5V‐10V); 10mV(10V‐340V)

Max. output power: 330W (110V output); 440W (220V output)

Protection: Overload, distortion, short circuit, overheat detection and alarm automatically

Voltage synchronization error: ≤10us

Phase

Range: 0~359.9°

Accuracy: ±0.2°

Resolution: 0.1°

Frequency

Sine signal: 10Hz‐1000Hz

Accuracy: <1mHz(20Hz‐65Hz); <10mHz(65Hz‐450Hz); <20mHz(450Hz‐1000Hz)

Resolution: 0.001Hz

Output characteristic: Can superimpose 2‐20 of harmonics order and DC with any amplitude (less than the rated value)

Power supply

Nominal input voltage: AC220V

Permissible input voltage: AC 100‐253V

Nominal frequency: 50Hz

Permissible frequency: 40~60Hz

Maximum current: 16A

Size and weight

PAV800 power amplifier unit: 2U, 483mm×88.5mm ×340mm(W×H×D), 9kg

PAV800 main power supply unit: 3U, 483mm×133mm ×470mm(W×H×D), 10kg
