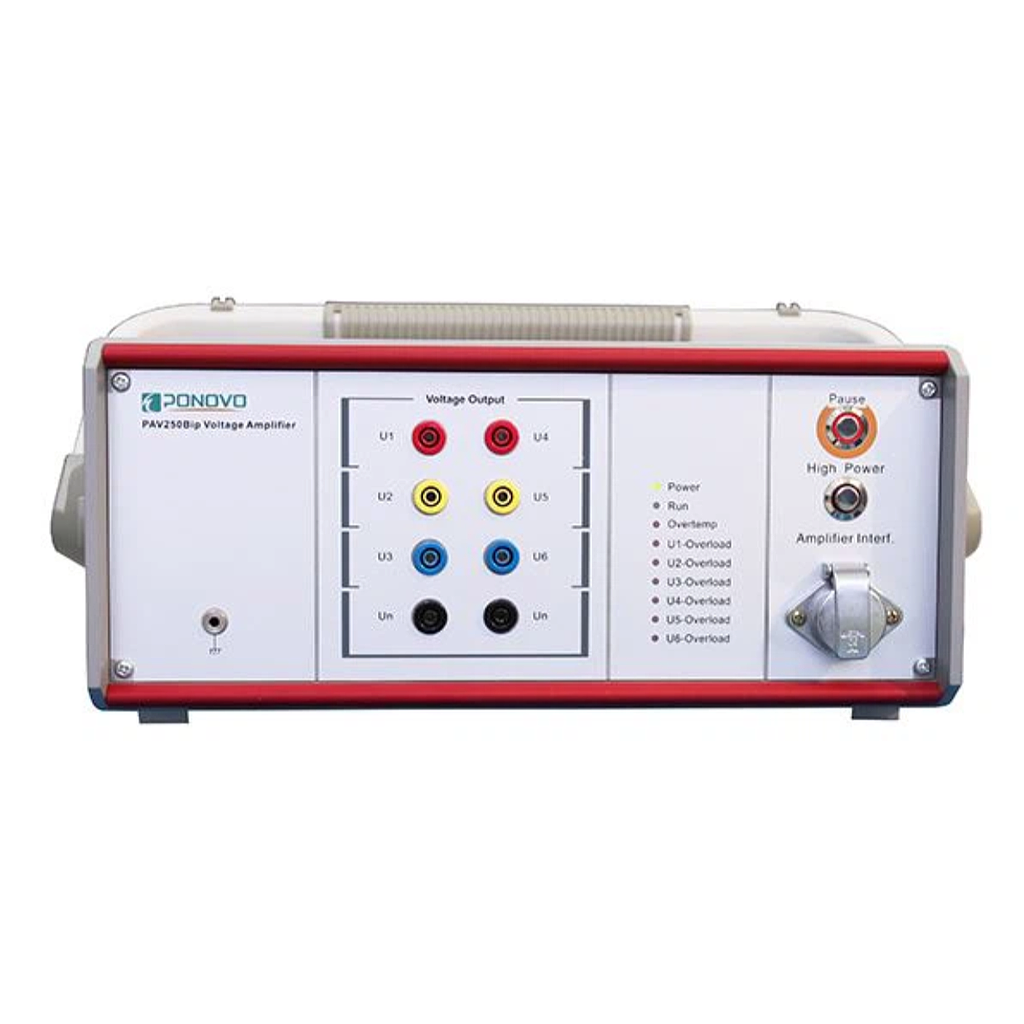

Ponovo PAV250Bip Portable Power Amplifier

Voltage output: 6 x 0~250V RMS; 6 x 0~300V RMS (optional)

Max. output power: >75VA (250V/300V output)

Input signal, Gain:

Standard: 0 ~ 5V RMS (±7.07Vpek), Gain: 50V/V; Gain: 60V/V (300V output, optional)

Option 1: 0 ~ 7.07V RMS (±10Vpek), Gain: 40V/V; Gain: 45V/V (300V output, optional)

Option 2: 0 ~ 11.31V RMS (±16Vpek), Gain: 24V/V; Gain: 30V/V (300V output, optional)

Voltage accuracy: <0.2%(5V~250V)

Voltage typical accuracy: <0.1%

Differential input impedance: 20k

Harmonic distortion ratio: ≤0.1%

Linearity: ≤0.2%

Phase accuracy: 0.2°

Frequency range: DC-3kHz±1dB

Step response: <80us

Input/output delay: <80us

Power supply: single phase 110/220V AC 50/60Hz

Chassis: 3U
