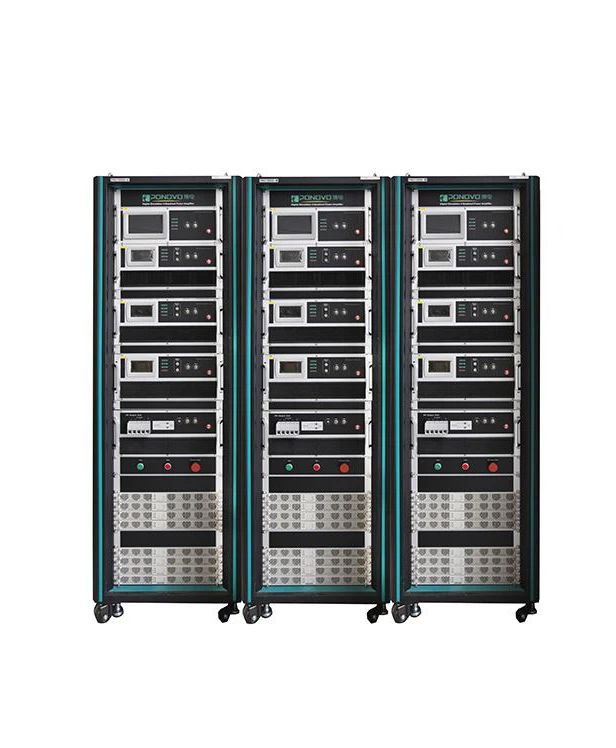

Ponovo PAV10000 4-Quadrant Power Amplifier

Nominal voltage:

AC: 270V (135V optional)

DC: ±382V (±191V optional)

Line regulation: 1.5x10^-4/10V

Gain: 40V/V or 25V/V

Gain Stability (const load & Temp.): ±0.1%/5min

Gain Linearity (Typ./Max): ±0.1%/±0.5%

Frequency range:

Bandwidth range DC-5kHz(±1dB)

Low level bandwidth (<0.5V): DC-50kHz(±3dB)

Harmonic distortion:

45-450Hz (Typ./Max): 0.1%/1%

450-5kHz: 0.6% typ. 1% guar.

Input:

Signal range (analog signal) 0~±10V(40V/V) or 0~±16V(25V/V)

Digital signal interface: Communication interface with fiber optic ports, supporting AURORA protocol

Impedance: 10kΩ

Input/Output delay: 10us

Power AC (Nominal voltage 270V): 10kVA

Power DC (Nominal voltage ±382V): 10kW

Long-time overload (1 hour): 15kVA

Max. short-time power: 20kVA

Max. sink power: 30% Rated output power

Measurement range:

Voltage: 0-300V

Current: 0-80A

Accuracy of voltage measurement: 0.5%RG

Accuracy of current measurement: 0.5%RG

Accuracy of power measurement: 0.5%RG

Protection: Overload/short-circuit/overheat

Digital monitoring unit:

Analog output: 0~±10V or 0~±16V

Signal accuracy

AC: 0.03%RG+0.1% @0.5-6.75V; 0.1%RG+0.5% @0.1-0.5V

DC: 0.03%RG+0.1% @0.5-9.55V; 0.1%RG+0.5% @0.1-0.5V

Output frequency range: 0-5000Hz

Frequency accuracy

Accuracy (DC):

15Hz-450Hz, ±0.02Hz

450Hz-2000Hz, ±0.1Hz

2000Hz-5000Hz, ±0.15Hz

Selectable waveforms: DC, sine, (square, triangle, sawtooth, step, optional)

Power supply: 3 Phase 380V/208V±10%, 50/60±5Hz

Power protection: Short-circuit, default-phase alarm

Dimensions:

Cabinet (W x D x H): 650mmx900mmx2100mm, 43U

Power amplifier unit: 19", 11U

Digital monitor unit: 19", 4U

Power supply unit: 19", 12U

Weight: 3x450kg
