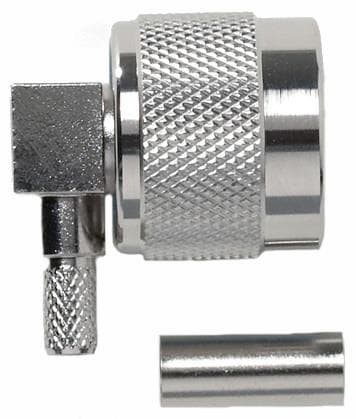

Pomona Electronics 73049 Connectors N RIGHT-ANGLE PLUG, 50 OHM, CRIMP TYPE, RG55, 142, 223
Model73049
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Plug (Pin)
Polarity: Standard
Impedance: 50 Ohms
RF Series: N Type
Body Style: Right Angle
Cable Type: RG-55, 142
Body Finish: Nickel
Orientation: Right Angle
Unit Weight: 30.663 g
Body Material: Brass
Mating Cycles: 500 Cycles
Mounting Style: Cable Mount / Free Hanging
Contact Plating: Gold
Contact Material: Brass
Maximum Frequency: 6 GHz
Termination Style: Crimp
Coupling Mechanism: Threaded
Contact Termination: Crimp
Insulation Resistance: 5 GOhms
