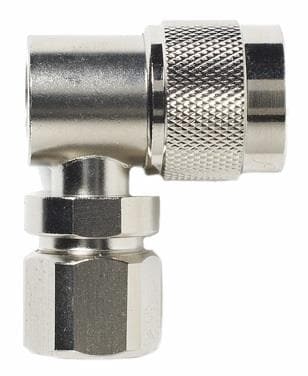

Pomona Electronics 73048 Connectors N RIGHT-ANGLE PLUG, 50 OHM, CLAMP/SOLDER TYPE, RG214, 225, 393
Model73048
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Plug (Pin)
Polarity: Standard
Impedance: 50 Ohms
RF Series: N Type
Body Style: Right Angle
Cable Type: RG-214, 225, 393
Body Finish: Nickel
Orientation: Right Angle
Body Material: Brass
Mating Cycles: 500 Cycles
Mounting Style: Cable Mount / Free Hanging
Contact Plating: Gold
Contact Material: Brass
Maximum Frequency: 11 GHz
Termination Style: Clamp
Coupling Mechanism: Threaded
Contact Termination: Clamp
Insulation Resistance: 5 GOhms
