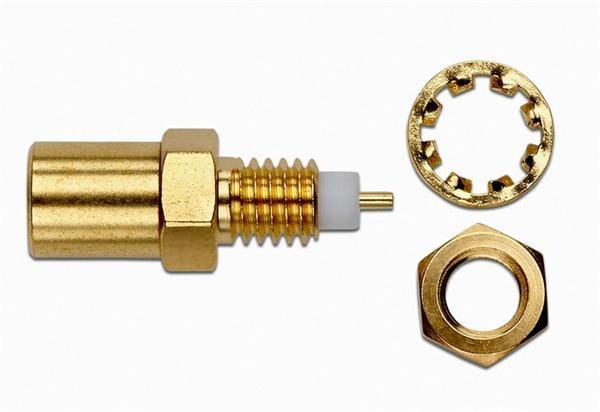

Pomona Electronics 72999 Connectors SMB JACK PANEL RECEPTACLE
Model72999
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Jack (Socket)
Polarity: Standard
Impedance: 50 Ohms
RF Series: SMB
Body Finish: Gold
Orientation: Straight
Unit Weight: 4.536 g
Body Material: Brass
Mounting Style: Panel Mount
Voltage Rating: 250 V
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 2 GHz
Termination Style: Solder
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
