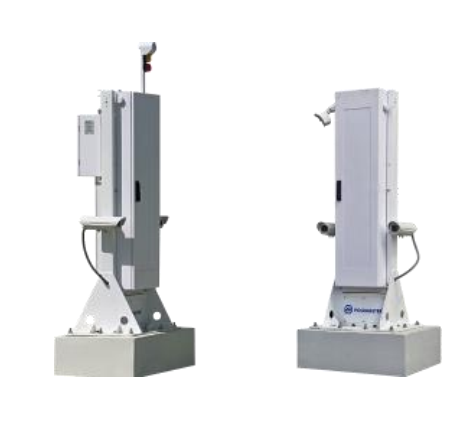

POLIMASTER PoliGate Vehicle G2 Radiation Portal Monitor

Speed ( km/h):5

Control zone (W x H, m): 3x2

Minimal detectable amounts of nuclear and radioactive materials:

241Am, kBq, (µCi): 620 (17)

137Cs, kBq, (µCi): 65(1.8)

60Co, kBq, (µCi): 40 (1.1)

57Co, kBq, (µCi): 85 (2.3)

133Ba, kBq, (µCi): 40 (1.1)

238U, g: 460

235U, g: 32

239Pu,g: 0.9

239Pu, g (4 сm Pb)-

252Cf, neutron/s: -

Speed ( km/h):8

Control zone (W x H, m): 6x2

Minimal detectable amounts of nuclear and radioactive materials:

241Am, kBq, (µCi): 2150 (58)

137Cs, kBq, (µCi): 230(6.2)

60Co, kBq, (µCi): 145 (3.9)

57Co, kBq, (µCi): 290 (7.8)

133Ba, kBq, (µCi): 145 (3.9)

238U, g: 1800

235U, g: 110

239Pu,g: 3.2

239Pu, g (4 сm Pb)-

252Cf, neutron/s: -

Detectors : Gamma: plastic scintillators (PVT), 11 l Neutron: 10B/ZnS(Ag)

Energy range : 20 keV to 3 MeV

False alarm rate : < 1/1000 passages

Communication : Ethernet

Ingress protection : IP65

Weight (detection block): 120 kg (gamma detection block)130 kg (neutron detection block)

Dimension (detection block) : 1645×448×250 mm (H×L×W)

Power supply: 110 (90-132) V AC or 220 (180-264) V AC, 47-63 Hz;12 V built-in rechargeable battery (> 8 h of operation)

Standards compliance: IEC 62244:2019, ANSI N42.35-2016, IEC 61000-6-2:2016, IEC 61000-6-3:2011, IEC 61326-1:2012, ЕN 55022:2010 (class B), IEC 61010-1:2010, IEC 62244:2019,ANSI N42.35-2006 (partially)

Operating conditions:

ambient temperature: –30 °C to 50 °C

atmospheric pressure: 84 kPa to 106.7 kPa

relative humidity: up to 98 % at 40 °C
