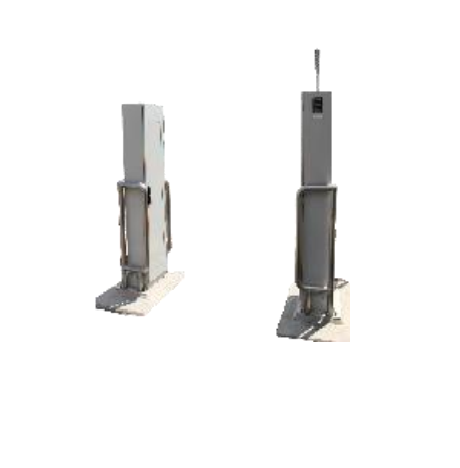

POLIMASTER PoliGate Pedestrian GN2 Radiation Portal Monitor

Speed ( km/h):5

Control zone (W x H, m): 1x2

Minimal detectable amounts of nuclear and radioactive materials:

241Am, kBq, (µCi): 200 (5.5)

137Cs, kBq, (µCi): 32 (0.87)

57Co, kBq, (µCi): 18 (0.47)

133Ba, kBq, (µCi): 20 (0.55)

238U, g: 870

235U, g: 47

239Pu,g: 1.4

239Pu, g (4 сm Pb)110

252Cf, neutron/s: 6500

Speed ( km/h):5

Control zone (W x H, m): 1.5x2

Minimal detectable amounts of nuclear and radioactive materials:

241Am, kBq, (µCi): 320 (8.7)

137Cs, kBq, (µCi): 48 (1.3)

57Co, kBq, (µCi): 26 (0.71)

133Ba, kBq, (µCi): 30 (0.8)

238U, g: 380

235U, g: 20

239Pu,g: 0.6

239Pu, g (4 сm Pb)62

252Cf, neutron/s: 3700

Detectors: Gamma: plastic scintillators (PVT), 11 l (gamma-only detection units), 6.6 l (gamma-neutron detection units) Neutron: 10B/ZnS(Ag)

Energy range : 20 keV to 3 MeV

False alarm rate : < 1/1000 passages

Communication : Ethernet

Ingress protection : IP65

Weight (detection block): 120 kg (gamma detection block)130 kg (gamma-neutron detection block)

Dimension (RPM) : 2090×465×250 mm (H×L×W)

Power supply : 85-264 V AC, 47-63 Hz;12 V built-in rechargeable battery (> 8 h of operation)

Standards compliance: IEC 61000-6-2:2016, IEC 61000-6-3:2011, IEC 61326- 1:2012, ЕN 55022:2010 (class B), IEC 61010-1:2010, ANSI N42.35-2006 (partially), IEC 62244:2019

Operating conditions:

ambient temperature: –30 °C to 50 °C

atmospheric pressure: 84 kPa to 106.7 kPa

relative humidity: up to 98 % at 40 °C
