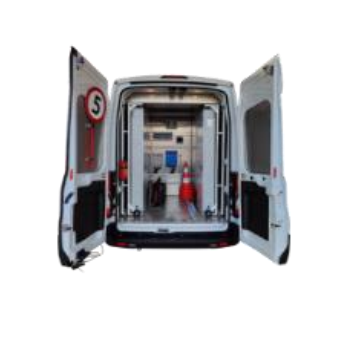

POLIMASTER PoliGate Mobile G1N1 Radiation Portal Monitor

Speed ( km/h):8

Control zone (W x H, m): 1.5x2.5

Minimal detectable amounts of nuclear and radioactive materials:

241Am, kBq, (µCi): 900(24)

137Cs, kBq, (µCi): 200(5.4)

60Co, kBq, (µCi): 110(3.0)

57Co, kBq, (µCi): 230(6.2)

133Ba, kBq, (µCi): 130(3.5)

238U, g: 1250

235U, g: 80

239Pu,g: 2.3

252Cf, neutron/s: 8500

Detectors : Gamma: plastic scintillators (PVT), 11 l Neutron: 10B/ZnS(Ag)

Energy range : 20 keV to 3 MeV

False alarm rate : < 1/1000 passages

Communication : Ethernet

Power supply : Vehicle power, portable gasoline generator;12 V built-in rechargeable battery (> 8 h of operation)

Operating conditions:

ambient temperature: –30 °C to 50 °C

atmospheric pressure: 88 kPa to 106.7 kPa

relative humidity: up to 98 % at 40 °C
