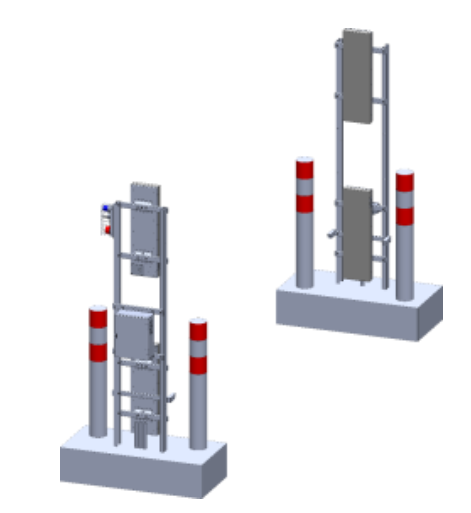

POLIMASTER PoliGate Light G4 Radiation Portal Monitor

Speed ( km/h):8

Control zone (W x H, m): 6x4.5

Minimal detectable amounts of nuclear and radioactive materials:

241Am, kBq, (µCi): 2400 (64)

137Cs, kBq, (µCi): 330 (8.8)

60Co, kBq, (µCi): 170 (4.5)

57Co, kBq, (µCi): 360 (9.7)

133Ba, kBq, (µCi): 180 (5.0)

238U, g: 1960

235U, g: 136

239Pu,g: 4.1

Gamma detectors : Organic plastic scintillator Detector volume is 8.8 l

Energy range : 20 keV to 3 MeV

False alarm rate : < 1/1000 passages

Communication : Ethernet

Ingress protection : IP55

Weight (detection block) : 66 kg

Dimension (detection block) : 1074×324×127 mm (H×L×W)

Power supply: 115-230 V AC, 47-63 Hz;12 V built-in rechargeable battery (> 8 h of operation)

Standards compliance: IEC 62244:2019, ANSI N42.35-2016, IEC 61000-6-2:2016, IEC 61000-6-3:2011, IEC 61326-1:2012, ЕN 55022:2010 (class B), IEC 61010-1:2010, IEC 62244:2019 (partially)

Operating conditions: ambient temperature: –30 °C to 50 °C; atmospheric pressure: 88 kPa to 106.7 kPa; relative humidity: up to 98 % at 40 °C
