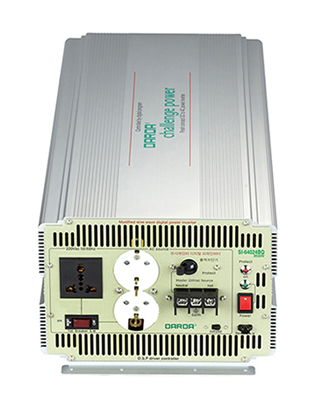

PNKHITECH SI-64024BQ Inverter (24VDC/AC228V, 8500W, Modified sine wave)

SPECIFICATIONS
DC input voltage : 24V
DC voltage standard : 26.8V
AC voltage standard : AC228V
Max output power time 15~16min : 8500W
Output power continuous : 6500W
Surge rating : 17kW
Effciency et rated power : 91%
Effciency et max power : 88%
THD [max] : 25%
No load current : no fan : 0.85A
on fan : 1.63A
Low battery shut down : 20V
Low battery return on power : 22.0V
High battery shut down : 31.0V
High battery return on power : 28.0V
Over temperature protection : -25 °C ~ +76 °C
Over temperature power on : 58 °C
Output wave form : Fan on temperature 41 °C(±3 °C)
Dimensions [W×H×D(mm)] : 225×154×540
Weight : 10kg
