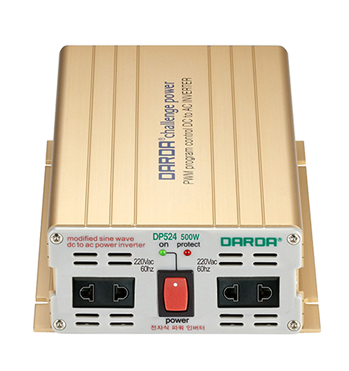

PNKHITECH DP524 Inverter (24VDC / AC228V, 500W, Modified sine wave)

SPECIFICATIONS
DC input voltage : 24V
DC voltage standard : 26.8V
AC voltage standard : AC228V
Max output power time 15~16min : 500W
Output power continuous : 300W
Surge rating : 900W
Effciency et rated power : 91%
Effciency et max power : 88%
THD [max] : 25%
No load current : no fan : 0.25A
on fan : 0.32A
Low battery shut down : 19.8V
Low battery return on power : 22.0V
High battery shut down : 31.6V
High battery return on power : 28.9V
Over temperature protection : -25 °C ~ +76 °C
Over temperature power on : 58 °C
Output wave form : Fan on temperature 41 °C(±3 °C)
Dimensions [W×H×D(mm)] : 118×50×192.5
Weight : 0.9kg
