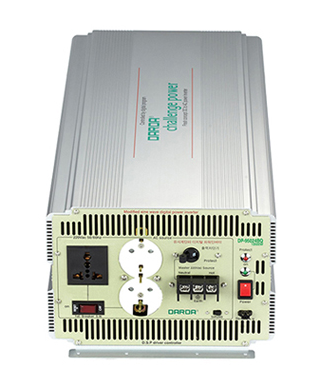

PNKHITECH DP-95024BQ Inverter (24VDC/AC228V, 10.5kW, Modified sine wave)

DC input voltage : 24V
DC voltage standard : 26.8V
AC voltage standard : AC228V
Max output power time 15~16min : 10.5kW
Output power continuous : 8400W
Surge rating : 21kW
Effciency et rated power : 91%
Effciency et max power : 88%
THD [max] : 25%
No load current : no fan : 0.98A
on fan : 1.98A
Low battery shut down : 20V
Low battery return on power : 22.0V
High battery shut down : 31.0V
High battery return on power : 28.0V
Over temperature protection : -25 °C ~ +76 °C
Over temperature power on : 58 °C
Output wave form : Fan on temperature 41 °C(±3 °C)
Dimensions [W×H×D(mm)] : 225×154×560
Weight : 13kg
