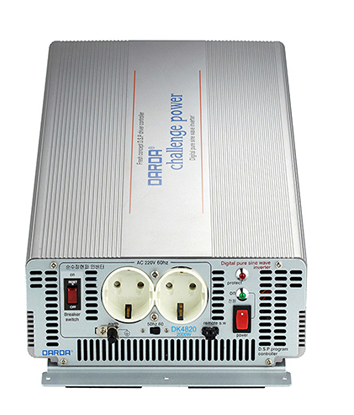

PNKHITECH DK4820 Inverter (48VDC/AC223, 2000W , Pure sine wave)

- DC input voltage:DC48V
- DC voltage standard: 53.6V
- AC voltage standard: AC223V
- Output power continuous: 2000W
- Surge rating: 4000w
- Effi ciency et rated power: 91%
- No load current: no fan: 0.44A
on fan: 0.6A
- Low battery shut down: 40.2V
- Low battery return on power: 42.5V
- High battery shut down: 61.0V
- High battery return on power: 59.0V
- Equency[50/60] selection: 60HZ
- Regulation: 2500W/222Vac
- Over temperature protection: -25℃ ~ +74℃
- Over temperature power on: 58℃
- Output wave form: Pure sine wave
- Cooling fan [auto fan]: Fan on temperature 40℃ (±0.5℃)
- Insulation transformer: 2KV ~ 2.5KV
- Over load protection:
Input senser: 100A
Input fuse: 30A(2EA)
Output sensor: 20A(Sensor)
Output circuit breaker: 10A(SS-001)
AC outlet/terminal: 2P Outlet 16A
- FCC (EMC) / AC120V: FCC part 15 sub part B class A
- KC (EMC) / AC220V: MSP-REMpnk-DK4820
- Dimensions [W×H×D(mm)]: 225×89×440 mm
- Weight: 5.5kg
