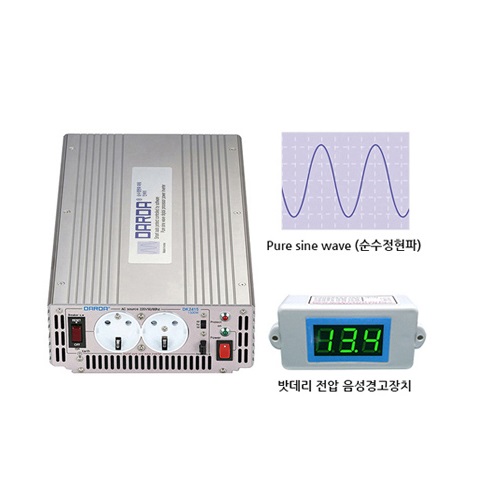

PNKHITECH DK1220NA Pure Sine Wave Inverter (13.4VDC; 2KW/220V)

Specification / LIMIT

DC input voltage: DC13.4V/ 10.5V~16.0V

Output power continuous: 2KW/220V / 220V±3%

Surge rating (power): 4KW/ ±10%

Efficiency(output): normal 89%/max 87% / ±3%

No load current:

- no fan: 1.50A / ±0.3A

- on fan: 2.07A / ±0.5A

THD (max): 1000W 1.1% / Max 2.0%

Low battery shut down/return: 10.0V/11.4V / ±1.0V

High battery shut down-return: 17.0V/15.4V / ±1.0V

Frequency selection: 50Hz/60Hz selection / ±0.5Hz

Output power & voltage regulation: 2KW/220V / ±5％

Over temperature protection/power on: -35℃~75℃/58℃ / ±6℃/±5℃

Auto cooling Pan Operating / Stopping Temperature: 40℃ / ±5℃

Output wave form: pure sine wave (D.S.P)

Insulation transformer tester(withstand voltage): 2KV~2.5KV(±0.5KV)

Overload protection:

- Input fuse: 80A(2EA) / Car fuse

- Output sensor: Output auto surge blocking/short protect

- Output breaker(reset) switch: 9A or 10A / SS-001

- AC outlet: 2P-16A / Output socket terminal

LED display battery voltage unit: Battery12V low tension 0.6V~9.8V high tension17V~18V Voice waming start 5 minutes and repeats 4 times / ±3~5℃

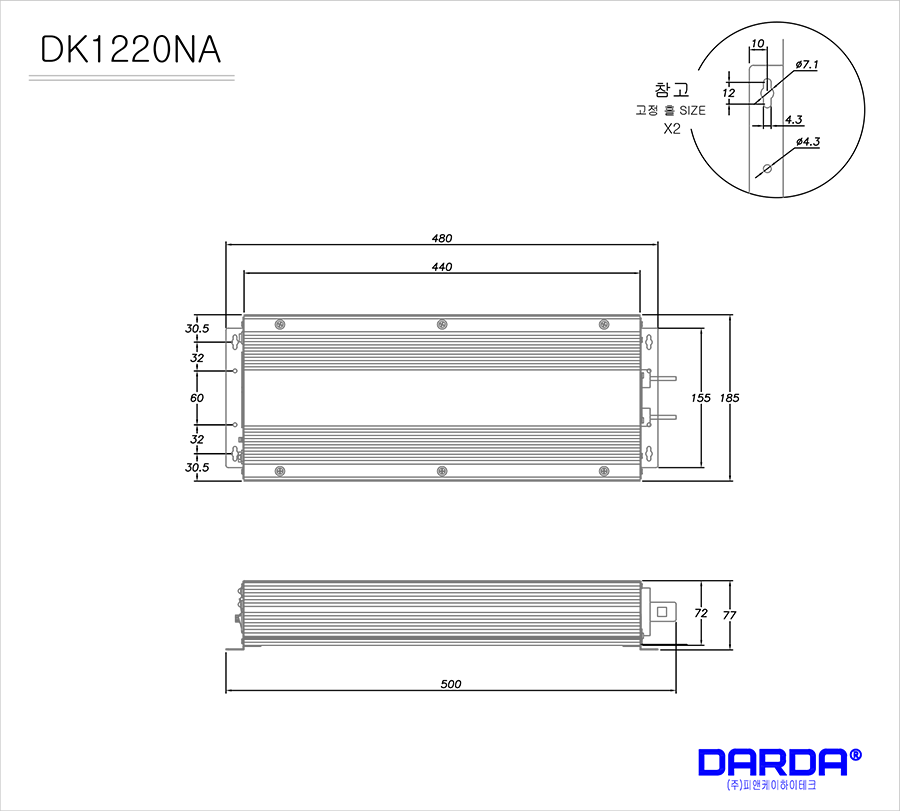

Dimensions [W×H×D] (mm): 185×72×440

Weight (Kg): 4.5Kg
