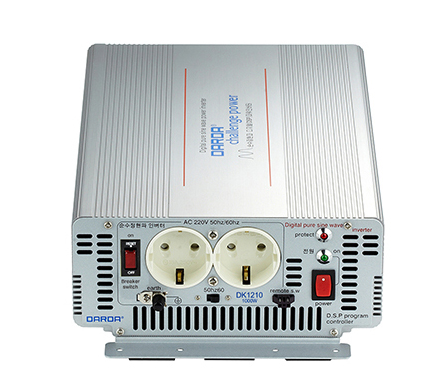

PNKHITECH DK1210 Inverter (12VDC/AC223, 1000W , Pure sine wave)

DC input voltage:DC12V
DC voltage standard: 13.4
AC voltage standard: AC223V
Output power continuous: 1000W
Surge rating: 2000w
Effi ciency et rated power: 91%
No load current: no fan: 0.9A
on fan: 1.3
Low battery shut down: 10.2V
Low battery return on power: 11.2V
High battery shut down: 17.2V
High battery return on power: 15.2V
Equency[50/60] selection: 60HZ
Regulation: 1200W/222Vac
Over temperature protection: -25℃ ~ +74℃
Over temperature power on: 58℃
Output wave form: Pure sine wave
Cooling fan [auto fan]: Fan on temperature 40℃ (±0.5℃)
Insulation transformer: 2KV ~ 2.5KV
Over load protection:
Input fuse: 40A(2EA) 30A(1EA)
Output sensor: 20A(Sensor)
Output circuit breaker: 6A(SS-001)
AC outlet/terminal: 2P Outlet 16A
FCC (EMC) / AC120V: FCC part 15 sub part B class A
KC (EMC) / AC220V:

Dimensions [W×H×D(mm)]:195×89×290 mm
Weight: 3.4kg
