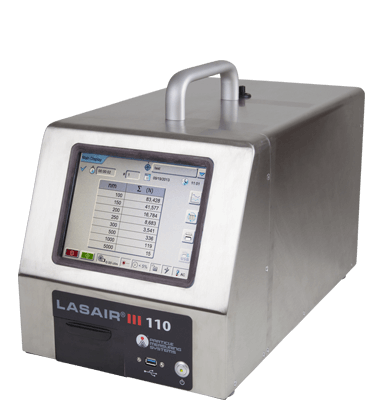

PMS Lasair III 110 Aerosol Particle Counter (0.1 – 5.0 μm, Built-in thermal printer, wifi)

Applications
+ Cleanroom and minienvironment monitoring
+ High-sensitivity applications (with High Pressure Diffuser)
+ Troubleshooting/mobile applications
+ Process gas monitoring (with High Pressure Diffuser)
+ Manifold sampling

Channel thresholds: 0.1, 0.15, 0.2, 0.25, 0.3, 0.5, 1.0, and 5.0 μm by default – All 8 channels are user-adjustable
Counting efficiency: 50% @ 0.1 μm
Flow rate: 1 CFM (28.3 LPM); monitored and adjusted electronically for portable applications
Maximum concentration: @ 10% coincidence loss: > 950,000/f^3, automatic coincidence alam
Laser source: Laser diode, 6 W (de-rated to 2.5 W), 810 nm, infrared
Laser cooling: Thermoelectric chilling (Peltier cooler), heat sink, dedicated cooling fan
Communication modes: Ethernet (PMS Protocol, Modbus, Web Server) or RS-232; four 4-20 mA outputs (3 particle, 1 status)
USB key for CSV data download
Environmental sensors: Optional Temp/RH probe; integrates up to 4 external sensors via 4-20 mA input
Display: 8.4 inch color VGA display (640 x 480); IR touchscreen CIP65 rated
Printer: Built-in thermal printer
Data storage: 10,000 data sets (includes particle and environmental data, plus location, time, etc.)
Data and sampling security: Stored data records cannot be altered; sampling recipes can be password protected
Dimensions (l, w, h): 29.5 x 49.0 x 34.8 cm
Weight: 15.6 kg (không pin); 17.5 kg (có 4 pin)
Power: 100 – 240 V, 3 A, 50 – 60 Hz
Operating environment: 15– 30 °C, 1 – 95% non-condensing
