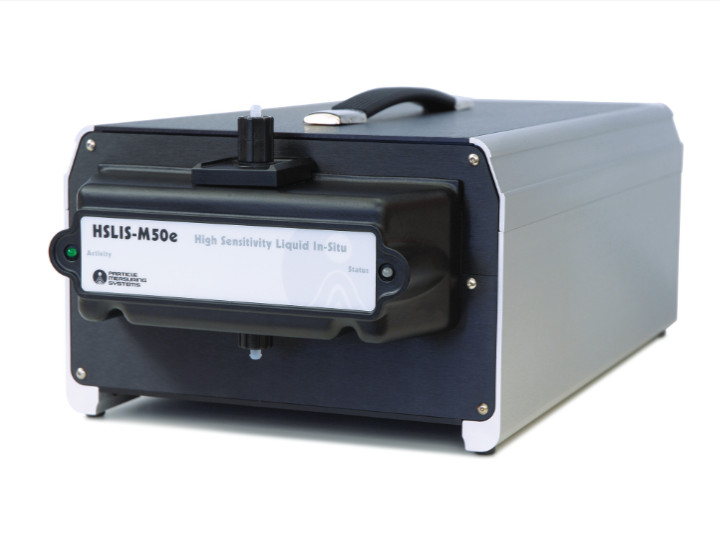

PMS HSLIS-M50e Liquid Optical Particle Counter ( 0.05 ~ 0.2 µm)

Application
+ Quantifying particle concentrations in DI water systems
+ Monitoring chemical delivery systems
+ Measuring filter efficiency
+ Detecting bacterial growth in DI water systems
+ Episodic event tracking and alarming
+ Continuous system monitoring
Size range: 0.05 – 0.2 µm
Channels: 4
Channel sizes: 0.05, 0.1, 0.15, 0.2 µm
Flow rate: 100 ml/min ± 10%
Sample temperature: 0.25 ml/min
Counting efficiency: 100% of sample volume
Maximum concentration: 10,000 counts/ml
Sample temperature: 90 °C
Zero count: < 1000 counts/liter
Dimension: 53 x 27 x 18 cm
Weight: 13 kg
Power: 5 – 250 VAC, 50 – 60 H
Environment: 10 – 35 °C, non-condensing
Communications: Ethernet, 4-20 mA, RS232
