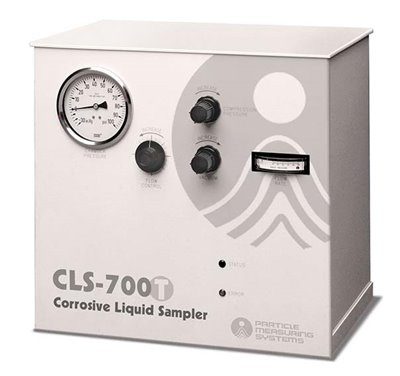

PMS CLS-700T corrosive liquid sampler

Application
+ Particle level measurement in effervescent liquids
+ Process monitoring of wafer cleaning baths
+ Chemical process monitoring
+ Sampling of parts cleaning vessels

Burette volume: 65 ml nominal
Assessed volume: 48 ml nominal
Maximum compression pressure: 60 psi at 248 °F (120 °C) or less; max. 45 psi at 302 °F (150 °C)
Exterior surface: Polypropylene (Meets flame retardant specification FM4910.)
Wetted surface materials: Kalrez® 4079, Teflon®, Kel-F® (See LiQuilaz particle counter information for other wetted surfaces)
Sample temperature: 50 – 302 °F (10 – 150 °C) at 45 psi or less; max. 248 °F (120 °C) at 60 psi; Sulfuric acid max. 212 °F (100 °C)
Zero count: <1 count="" ml="" br=""> Dimensions: (l, w, h) 16 x 10 x 16 in (41 x 26 x 39 cm)
Weight: 34 lb (15.5 kg)
Communications: RS-232 or RS-485
Environment Temperature: 50 – 95 °F (10 – 35 °C); Humidity: non-condensing
Software: SamplerSight, Facility Net
Sampling: Optionally controlled via external trigger
Factory requirements: Power: See sensor requirements. Gas pressure: 70 – 150 psi. Liquid connections: Flaretek® 1/4 in.
Particle Counter: LiQuilaz S02 or LiQuilaz S03 LiQuilaz S03 or LiQuilaz S03 LiQuilaz S05
