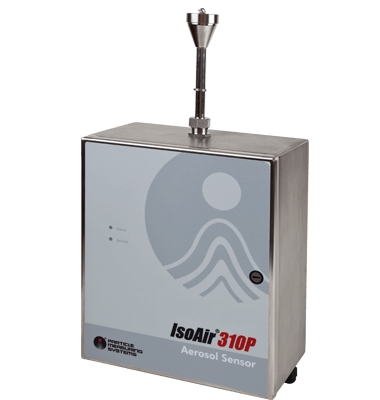

PMS IsoAir 310P Aerosol Particle Sensor

21501-4 and CE standards

Application:

+ Pharmaceutical manufacturing area
+ Isolator monitoring
+ Cleanroom monitoring
+ Aerospace and industrial applications
+ Trend analysis
+ Statistical process control

Channels: 0.3, 0.5. 1.0 and 5.0 µm channels or can be set for two-channel mode: 0.5 and 5.0 µm
Flow ratet: 1.0 ft3/min (28.3 L/min)
Zero: count level ≤ 7.07 counts/m3
Maximum concentration @ 10% coincidence loss: 1,374,269/ft3
Exterior surface Passivated stainless steel (Grade 316L)
Dimensions (W x D x H): 25 x 30 x 15 cm
Weight: 9 kg
Power: 100 – 240 VAC, 1 A, 50/60 Hz universal power supply
Environment
+ Temperature: 4 – 35 °C
+ Humidity: 5% – 95% Non-condensing
+ Altitude: 0 – 2,000 m
Standard: Sample probe (stainless steel), probe cap and chain; spare fuse(s); tubing
Manual: IsoAir 310P Operations Manual included
Zero count filter: Included
