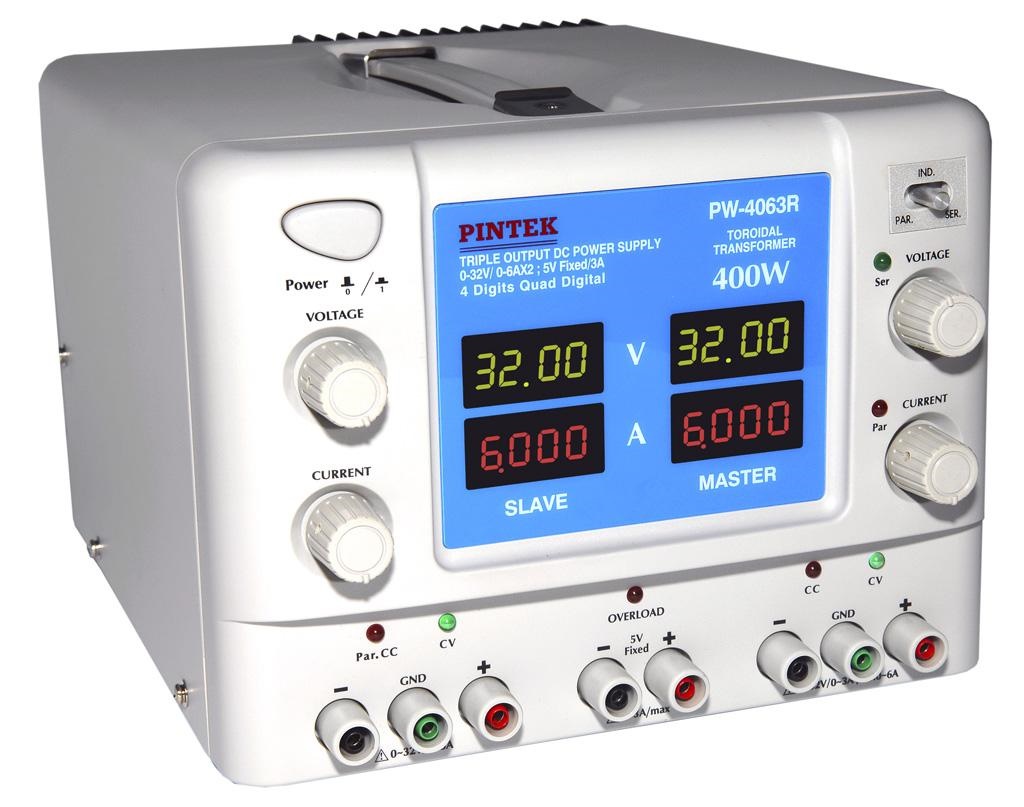

PINTEK PW-4063R DC Power Supply (32V/6A x 2 + 5V/3A ; 4 Digits + 4 Display)

Use Toroidal Transformer. Low EMI & High EMS.

Triple output, 0-32V/0-6A X2 and 5V/3A .Max. 400Watts

Tracking operation. Max. output 64V/6A on tracking series or 32V/12A on tracking parallel.

4 display, Green LED shows Voltage and Red LRD shows Current. Easy to read.

Compact design. G.W. 9Kgs only. Easy to handle.

The resolution of PW-4063R as high as 0.01v and 0.001A.

Provide 4Pcs 10turns micro adjust VR for Voltage and Current adjustment. Easy to operate.

Very low Ripple & Noise, less than 0.4mVrms. Very suit for precise measurement.
