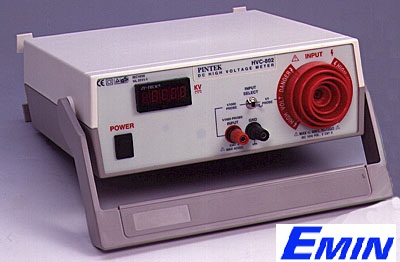

Pintek HVC-802 High Voltage Meter (10GΩ / 40KV DC Bench Type Meter )
ManufacturerPINTEK(View more products from this manufacturer)
ModelHVC-802
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
| Brand: Pintek Model: HVC-802 Origin: Taiwan High voltage meter / High voltage probe meter, 2 in 1 instrument. |
 | Input impedance: 10G Ω; Temperature coefficient:100PPM / oC. |
| 4 1/2 Red LED display, convenient for observation. |
| Accuracy ≦ 0.5%, Resolution 10V. |
GENERAL
- HVC-802 is a combination designed DC 40KV high voltage DIGITAL VOLT METER, directly 40KV?measuring or in directly measuring throung High Voltage Probe.
- HVC-802 provide 10GΩ high input impedance on the directly measurement to minimize the loading effect so that to show you the actual voltage on the measuring circuit.
- HVC-802 display by 4 1/2, 0.36" Red LED, easy to observation.
- HVC-802 provide a high accauracy, ≦ 0.3%, high resolution 10V for Max. 40KV
- measurement.HVC-802 meet the CE, TUV/GS, UL CUL, regulation.
| More Spec | Manual | The Dimension Comparison Fig. |
