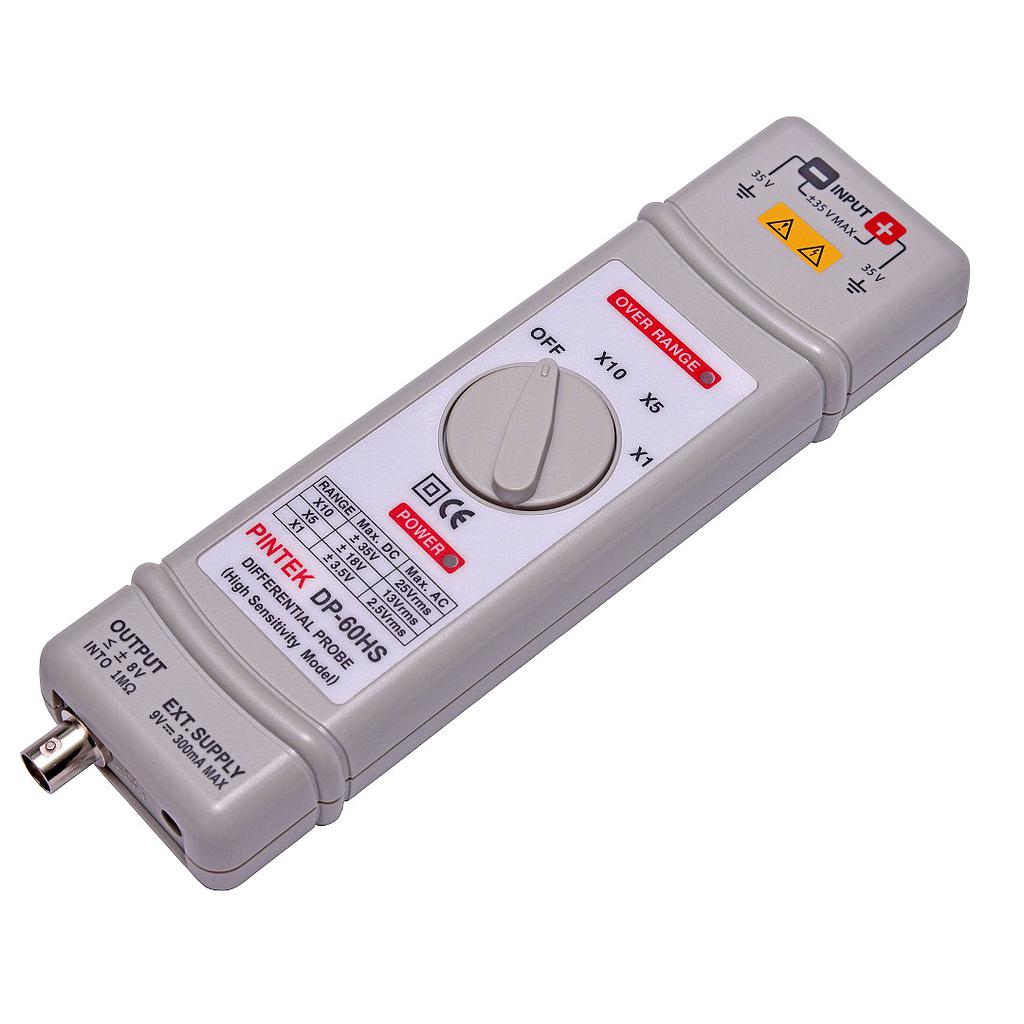

PINTEK DP-60HS Differential Probe (60 MHz / 70 Vp-p)

Bandwidth:

DC - to 60 MHz (-3 dB) for X10

DC - to 60 MHz (for X5)

DC - to 30 MHz(X1)

Attenuation: x10, x5, or x1

Accuracy: ≦ ±2%

Voltage Input Ranges:

≦ 35 V for X10, (i.e about 25 V RMS or 70 Vp-p)

≦ 17.5 V for X5, (i.e about 13 V RMS or 35 Vp-p)

≦ 3.5 V for X1, (i.e about 2.5 V RMS or 7 Vp-p)

Input Impedance: 1MΩ // 10 pF

Output: ≦ ±4.0 V

Output Impedance: 50 Ω

Rise Time: 5.8 ns

Power Supply: External 9V DC power supply.
