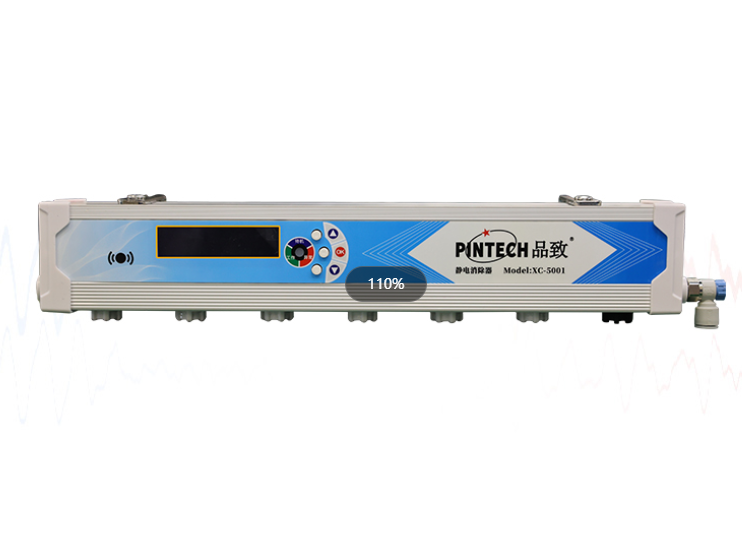

Pintech XC-5001 Static Eliminator (0.1MPa-0.3MPa, 24V, <500mA)

Input voltage: DC 24V

Input cur: <500mA

Power: <8W

Output voltage: 0~±10000Vp-p

Self-balancing technology

1.Can monitor the electrostatic voltage on the surface of the product in real time

2.The air rod can adjust the positive and negative ions by itself according to the changes of the surrounding environment, electric field, number of ions and other factors,so that the electrostatic voltage on the surface of the product is controlled within 0-±20V.

Duty factor: 0%-99%

Installation distance: 100-1000mm

Test distance: 300mm

Test pressure: 0.1MPa-0.3MPa

Dissipation time: ≤2 seconds

Balance voltage: ≤20V

Output frequency: Adjustable with 5 ranges:10/25/50/62.5/71Hz

Status display: When the power is connected to the standby mode, the blue light will be lit, the green light will be lit when it is working normally, and the red light will continue to be on when the high voltage is abnormal.

Working temperature: 0-45℃

Working humidity: <75%

Dimension: 360*72*30mm(30cm-200cm Length is optional)
