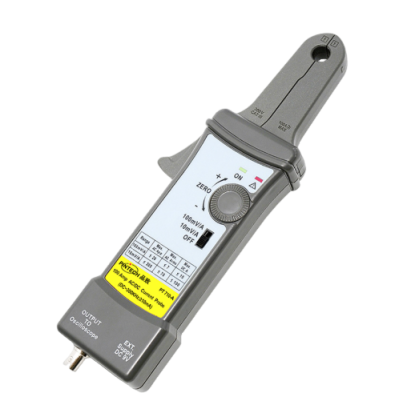

Pintech PT710-H Current probe (300kHz, 200A)
ManufacturerPintech(View more products from this manufacturer)
ModelPT710-H
USD 811.20
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Bandwidth: DC-300kHz
Measurement: DC：200A； AC：400Ap-p； RMS：140A
Conversion ratio: 10mV/A，100mV/A
Measuring wire diameter: ≤11mmΦ
Sensitivity/oscilloscope show 1mV: 10mA
Rise Time: 1.2 μs
Measurement accuracy:
±3%: 50mA~20Apeak at 100mV/A
±4%:500mA~80Apeak at 10mV/A
±15%: 80A~200Apeak at 10mV/A
Working voltage: 300V CAT III
Max floating voltage: 600V CAT II
Size: 280*70*32 mm
