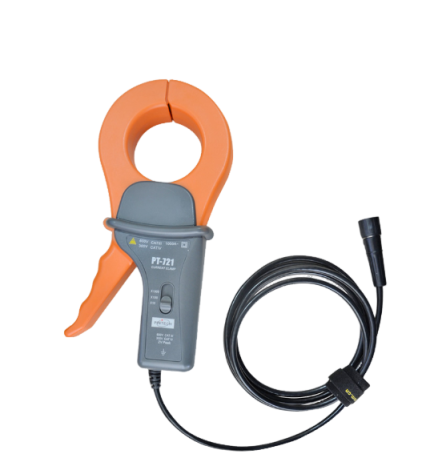

Pintech PT-721 AC Current probe (100kHz,1200A)

Current range:0.1A~10A; 10A~200A; 200A~1200A

Attenuation ratio: 100mV/A （10X）; 10mV/A （100X); 1mV/A （1000X）

Accuracy: ≤3%+10mV; ≤2%+5mV; ≤1%+1mV

Bandwidth: 10Hz~100kHz(-3dB)

Max. dV/dt: 10A/μs

Max. current: when ＞1kHz，1000A Continuous current;If ≥1200A(no longer than 20 minutes）

Load impedance:≥1MΩ and ≤47pF

Rise/Fall time:≤3.5us

Working voltage: 600V rms

Common mode voltage: 600V CAT III and interference level 2

Diameter of maxillary mouth: 53mm

Max. Conductor size: Cable: maximum diameter:Ф52mm； bus harness； The single river flow row is:5х5mm and the four busbars are 30х5mm

Working Temperature/Humidity: 0~50℃/20~75%RH

Size: 216х111х45mm

Weight: 500g
