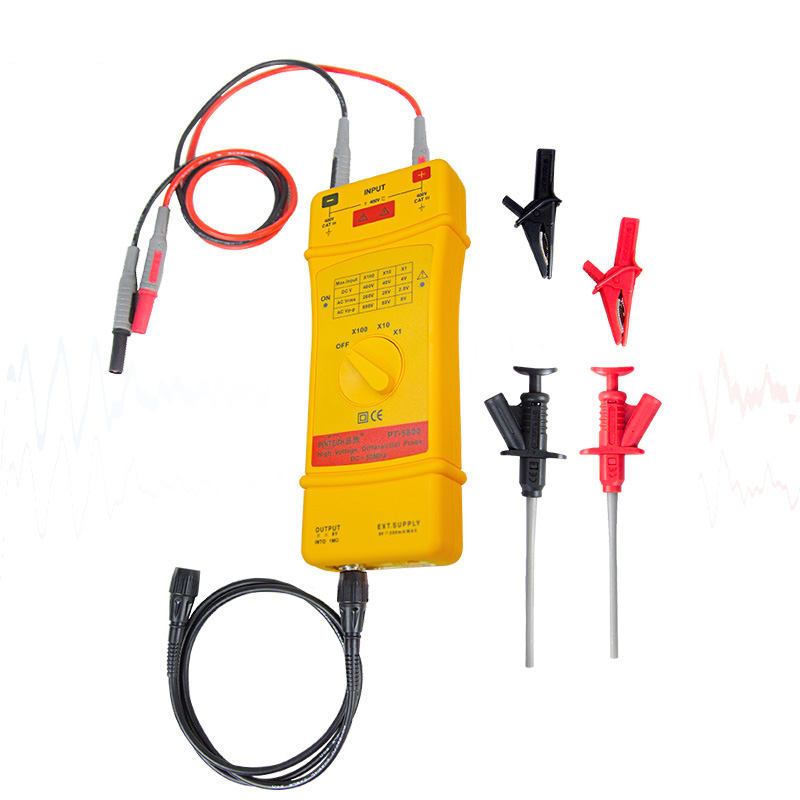

Pintech PT-5800 Differential probe (50MHz, 800Vp-p)
ManufacturerPintech(View more products from this manufacturer)
ModelPT-5800
USD 1,311.60
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Bandwidth(-3dB): DC-50MHz
Attenuation Ratio:1X,10X,100X
Rise time: 7ns
Accuracy: ±2%
Testing Vp-p: 8V-80V-800V
Input DC Voltage: 4V-40V-400V
AC rms: 280V
Impedance: 3MΩ//2.5pF
Oscilloscope input impedance: 1MΩ
Power: 9V adapter
CMRR (Typical): 60Hz＞80dB; 100Hz＞60dB; 1MHz＞50dB
Working Temperature: 0~50℃
Working Humidity: 10~85%RH
Weight: 390g
Dimension (LxWxH): 218x83x30mm
