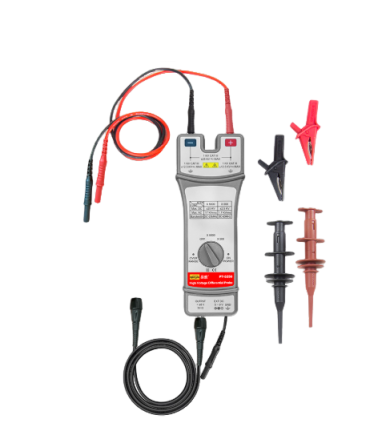

Pintech PT-5250 Differential probe (60MHz, 50kVp-p)
ManufacturerPintech(View more products from this manufacturer)
ModelPT-5250
USD 2,859.60
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Bandwidth(-3dB): DC-60MHz
Attenuation Ratio: 500X, 5000X
Rise time: 5.8ns
Accuracy: ±2%
Testing Vp-p: 5kV-50kV
Input DC Voltage: 2.5kV-25kV
AC rms: 17kV
Impedance: 140MΩ//3pF
Oscilloscope input impedance: 1MΩ
Power: 9V adapter
CMRR (Typical): 60Hz＞80dB; 100Hz＞60dB; 1MHz＞50dB
Working Temperature: 0~50℃
Working Humidity: 10~85%RH
Weight: 488g
Dimension (LxWxH): 275x147x34mm
