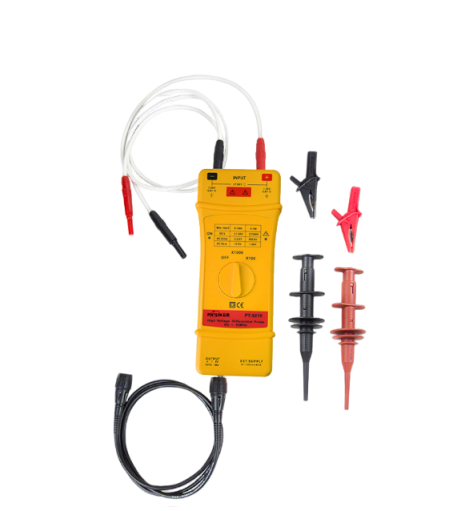

Pintech PT-5240 Differential probe (75MHz, 40kVp-p)
ManufacturerPintech(View more products from this manufacturer)
ModelPT-5240
USD 2,462.40
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Bandwidth(-3dB): DC-75MHz
Attenuation Ratio: 500X, 5000X
Rise time: 4.7ns
Accuracy: ±2%
Testing Vp-p: 4kV-40kV
Input DC Voltage: 2kV-20kV
AC rms: 14kV
Impedance: 110MΩ//1pF
Oscilloscope input impedance: 1MΩ
Power: 9V adapter
CMRR (Typical): 60Hz＞80dB; 100Hz＞60dB; 1MHz＞50dB
Working Temperature: 0~50℃
Working Humidity: 10~85%RH
Weight: 390g
Dimension (LxWxH): 218x83x30mm
