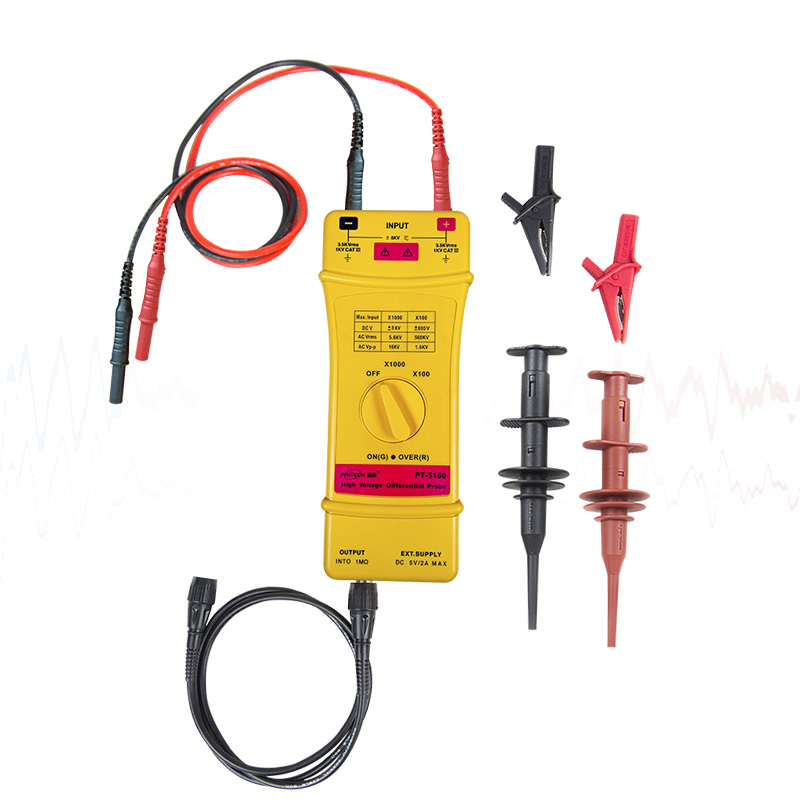

Pintech PT-5160 High voltage differential probe (100MHz, 16kVp-p)
ManufacturerPintech(View more products from this manufacturer)
ModelPT-5160
USD 1,494.00
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Bandwidth(-3dB): DC-100MHz
Attenuation Ratio:100X, 1000X
Rise time: 3.5ns
Accuracy: ±2%
Testing Vp-p: 1.6kV-16kV
Input DC Voltage: 800V-8kV
AC rms: 5.6kV
Impedance: 20MΩ//5pF
Oscilloscope input impedance: 1MΩ
Power: 5V adapter
CMRR (Typical): 60Hz＞80dB; 100Hz＞60dB; 1MHz＞50dB
Working Temperature: 0~50℃
Working Humidity: 10~85%RH
Weight: 450g
Dimension (LxWxH): 220x85x30mm
