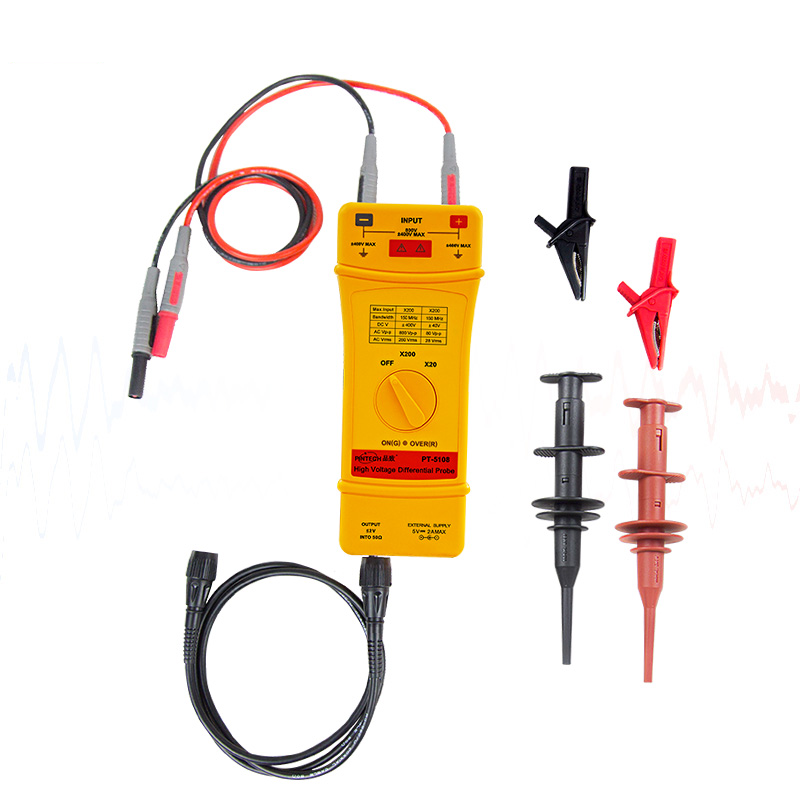

Pintech PT-5108 Differential probe (150MHz, 800Vp-p)
ManufacturerPintech(View more products from this manufacturer)
ModelPT-5108
USD 1,941.60
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Bandwidth(-3dB): DC-150MHz
Attenuation Ratio:20X, 200X
Rise time: 2.3ns
Accuracy: ±2%
Testing Vp-p: 80V-800V
Input DC Voltage: 40V-400V
AC rms: 280V
Impedance: 20MΩ//5pF
Oscilloscope input impedance: 50Ω
Power: 5V adapter
CMRR (Typical): 60Hz＞80dB; 100Hz＞60dB; 1MHz＞50dB
Working Temperature: 0~50℃
Working Humidity: 10~85%RH
Weight: 450g
Dimension (LxWxH): 220x85x30mm
