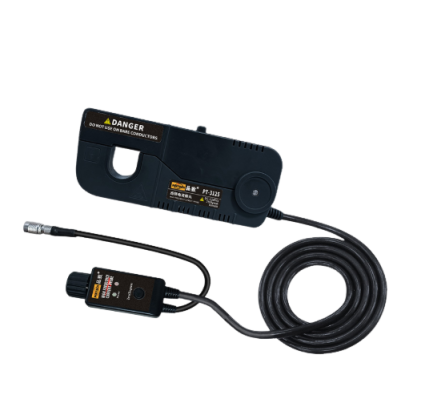

Pintech PT-3225A High frequency current probe (25MHz, 500A)
ManufacturerPintech(View more products from this manufacturer)
ModelPT-3225A
USD 3,333.60
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Bandwidth(-3dB): DC-25MHz
AC current: 500Ap-p
DC current: 250A DC
Maximum current: 170A rms
Minium current: 20 mA
Accuracy: 10mV/A: 1%±1mV; 100mV/A: 1%±5mV
Conversion ratio: 10mV/A(100X); 100mV/A(10X)
Measuring range:
10mV/A: 20mA~25Apeak
100mV/A: 25~250Apeak
Noise rms: 20mA
Rise time: 14ns
Coupled mode: AC/DC
Clamp dia.: 20mm
Power supply: 12V
Operation temperature: 0~50℃
Operation humidity: 20~75%RH
size(mm): probe pliers 151.9*31.8*64.7
Weight: 500g
