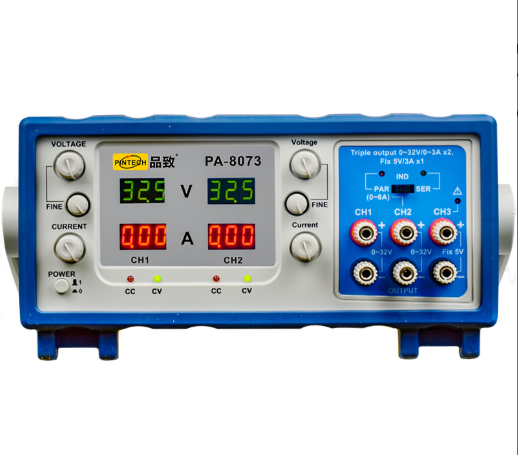

Pintech PA-8073 Triple output DC power supply (DC 0~32V/3A x2, 5V/3A)

Power Transformer: E.I Type Transformer

Max. Continual Output Power: 207VA

Max. Raised Temperature< 45°C

Independent Output: 0~32V/0~3A x 2, 5V Fixed / 0~3A

Constant Voltage Characteristic

Regulation: Line <0.01%+3mV, Load <0.01%+5mv

Ripple & Noise: < 0.4mVrms

Temperature coefficient< 300PPM/°C

Constant Current Characteristic

Regulation: Line <0.2%+2mA, Load <0.2%+3mA

Ripple & Noise: < 2.5mArms

5V Fixed Output

Regulation: Line < 5mV，Load <10mV

Ripple & Noise: < 1.5mVrms

Voltage Accuracy: 5V ± 0.25V

Max. Output Current: 3A

Tracking Operation

Parallel Regulation: Line < 0.01%+3mV, Load < 0.01+5mV

Series+and-Supply Regulation:

Line < 0.01%+3mV, Load < 0.01+5mV

Slave tracking error <0.5%+digital of the master 2

Series Single Supply RegulationLine <0.01%+5mA,Load <300mV

Display

Voltage: 3 Digits 0.36" Green LED

Current: 3 igits 0.36" Red LED

Accuracy: 0.1% + 2位

General

Power source: ACV 115/230 ± 10%, 50/60Hz

Dimension ( W x H x D):255 x 120 x 380 mm

Weight: 7.9kg
