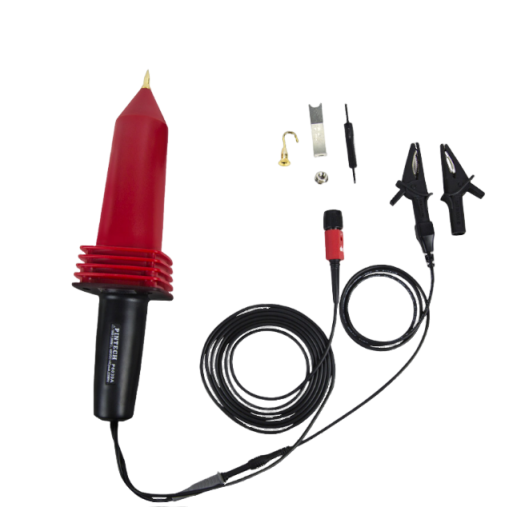

Pintech P6039A High-voltage probe (39kV, 50MHz)
ManufacturerPintech(View more products from this manufacturer)
ModelP6039A
USD 1,318.80
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Attenuation Ratio: 1000:1
Impedance: 900MΩ
Input Capacitor: 2pF
Adjustable capacitance range: 10pF-35pF
DC+ACpeak: 39kV/30 sec
AC RMS: 27kV/30 sec
The pulse voltage: <27kVp-p
Max loading current: 45µA
Bandwidth(-3dB): DC-50MHz
Rise Time: 7ns
Noise: DC>60dB(1kHz); >50dB(1MHz)
Accuracy:
DCV ≤3%
ACV≤3% at 60Hz(0-10kVrms) , 5% at 60Hz(10~20kVrms)
Operation Temperature: -10～55℃
Operation Humidity: ≤85%RH
Size(mm): 80x80x320
Weight: 460g
