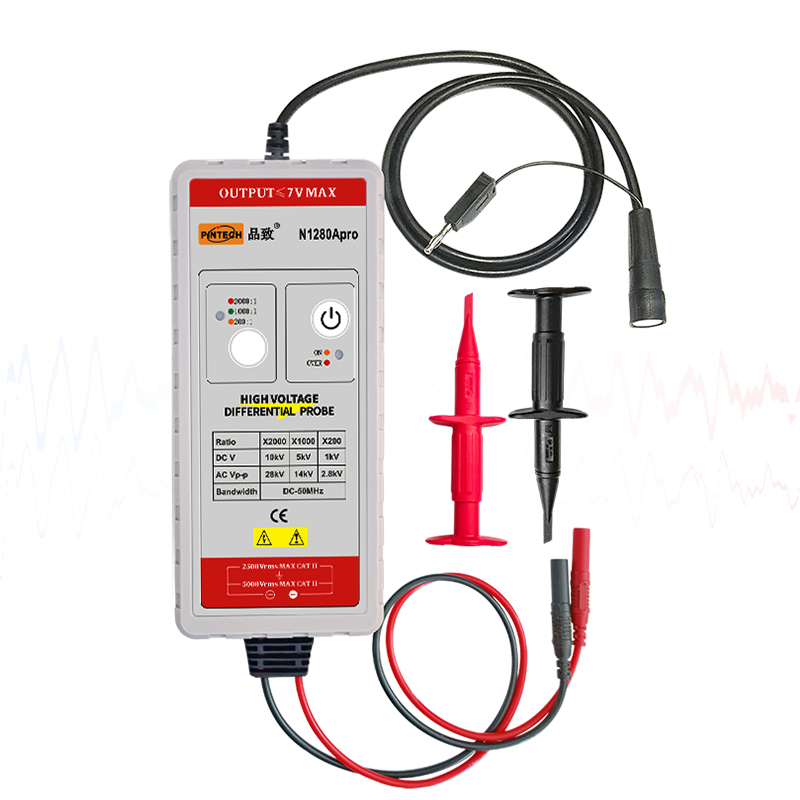

Pintech N1280APro High frequency differential probe (50MHz, 28kVp-p)
ManufacturerPintech(View more products from this manufacturer)
ModelN1280APro
USD 2,226.00
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Type: Battery-powered/adapter-powered
Bandwidth(-3dB): DC-50MHz
Attenuation Ratio: 2000X,1000X,200X
Accuracy: ±2%
Input Impedance: 60MΩ//1.25pF
Rise time: 7ns
Testing Vp-p: 2.8kV~28kV
Input DC Voltage: 1kV~10kV
Differential mode voltage: 1.4kV~14kV
rms: 9800V
Output: ≤14V
Offset (typical)<±5mV
Oscilloscope input impedance: 1MΩ
Power: 6V adapter
CMRR (Typical): DC:＞80dB；1MHz:＞45dB
Working Temperature: 0~50℃
Working Humidity: 20~75%RH
Weight: 412g
Dimension (LxWxH): 187x83x41mm
