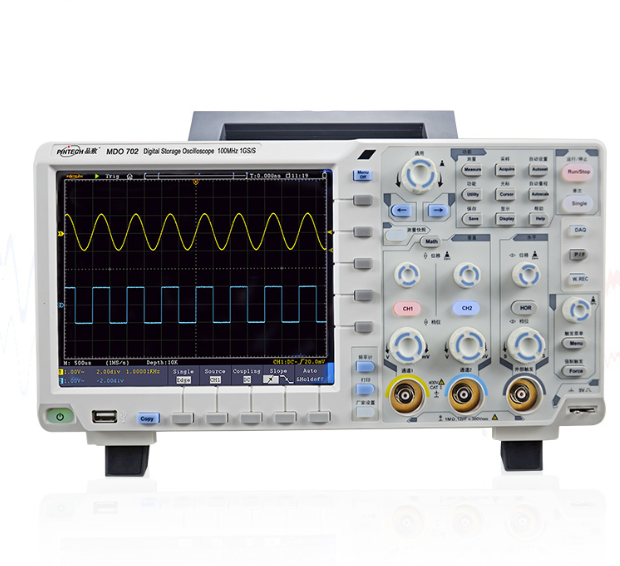

Pintech MDO 702 Benchtop oscilloscope (3 channels, 100MHz, 1GS/s)

Bandwidth: DC-100MHz

Rea-time sampling rate: 1GS/s

Storage depth: 40M

Vertical resolution: 8bit

Time base accuracy (s/div): 2ns/div - 1000s/div, step by 1-2-5

Rise time（Typical values on BNC）: ≤3.5ns

Channel: 2+1(externally triggered)

Display: 8" color LCD, 800 x 600 pixels, multi-touch support

Input impedance: 1MΩ ± 2%, and 15pF±5pF in parallel

Isolation between channels: 50Hz : 100 : 1, 10MHz : 40 : 1

Input voltage: 1MΩ ≤300Vrms; 50Ω ≤50Vrms

DC gain accuracy: ±3%

Probe attenuation coefficient: 0.001X-1000X, step by 1-2-5

Low frequency response (AC coupling): ≥10Hz (BNC)

Waveform interpolation: sin (x) / x

Time interval（△T) accuracy of measurement:

Single: ±(1sample interval time+ 1ppm x reading + 0.6ns)

Average >16 : ±(1sample interval time + 1ppm x reading + 0.4ns)

Input coupling: DC, AC , GND

Vertical sensitivity: 1mV/div - 1V/div (at input)

Trigger type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional)

Trigger mode: Auto, Normal, and Single

Cursor measurement: Voltage difference between cursors (△V), time difference between cursors (△T)

Waveform calculation: ＋, －, x, ÷, FFT

Waveform storage: 100 groups

Standard interface: USB, Pass/Fail, LAN, VGA (Matching)

Power supply: 100V - 240V AC, 50/60Hz, CAT II
