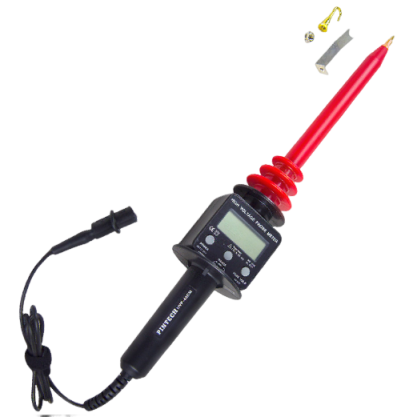

Pintech HVP-40DM High-voltage probe (40kV)

Input Impedance: 2000MΩ

Max. Operation Voltage: 40kV DC , CAT II , Pollution 2

LCD: 3999 digital display LCD

Bandwidth(Frequency): 50/60Hz only

Accuracy: ≦ 1.0% ± 2 bits (All Range)

Temperature Coefficient≦ 100ppm /℃

Maximum Loading Current≦ 20μA

Maximum Loading Power≦ 0.8 watt

Voltage Range: 40kV / 4kV / 400V A total of 3 gears

Resolution: 10V / 1V / 0.1V A total of 3 gears (by gear)

Power: 9V battery; 9V / 006P, IEC6L R1, NEDA 1604A

Battery life: About 200hours (when use alkaline battery )

Automatic close-down function: About 30minutes

Peak value locking time≧ 400 ms

Sampling: 4times per second

Weight: 360g

size: Φ80*420 mm
