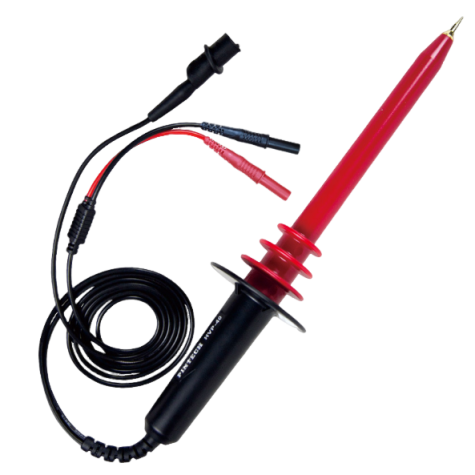

Pintech HVP-40 High-voltage probe (40kV, 60Hz)

Input Impedance: 1000MΩ;

Attenuation Ratio: 1000：1

Max. Operation Voltage: DC 0~ ± 40kV; AC 1~28kV(50/60Hz)

Polarity: Positive/negative are measurable

Bandwidth(Frequency): 50/60Hz only

Accuracy:

DC：± 2% to 20 kV , ± 3% to 40 kV

AC:-5% to -15% (1~28KV ; 50/60Hz)

Temperature Coefficient≦ 200ppm /℃

Maximum Loading Current≦ 40μA ( at 40kV DC )

Maximum Loading Power≦ 1.6 watt

The specified connection: DMM with 10MΩ input impedance ± 0.5% accuracy

Meter output instructions　: X 1000，1000V→1V, 10kV→10V

Weight: 230g

size: Φ80*340 mm
