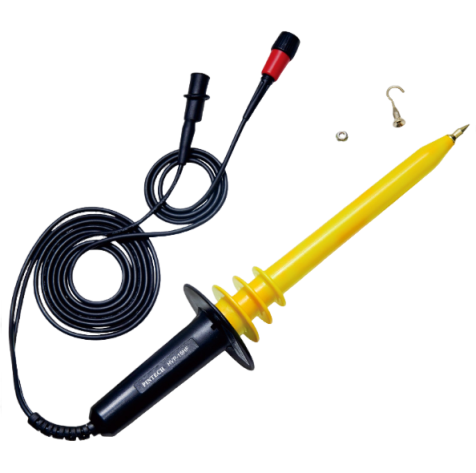

Pintech HVP-15HF High-voltage probe (10kV, 40MHz)
ManufacturerPintech(View more products from this manufacturer)
ModelHVP-15HF
USD 294.00
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Attenuation Ratio: 1000:1
Impedance: 100MΩ±5%
Input Capacitor: 3.0pF±0.5pF
Adjustable capacitance range: 5pF-50pF
DC+ACpeak: 10kV
AC RMS: 7kV
The pulse voltage: 20kVp-p
Max loading current: _
Bandwidth(-3dB): DC-40MHz(-3dB)
Rise Time: 9ns
Noise: DC>60dB(1kHz); >50dB(1MHz)
Accuracy:
DCV ±3%(DC to 10kV)
ACV ±3%(1kHz/1kV/1kHz rms)； -3dB 0-40MHz
Operation Temperature: 0～50℃
Operation Humidity: ≤85%RH
Size(mm): Φ75x340
Weight: 250g
