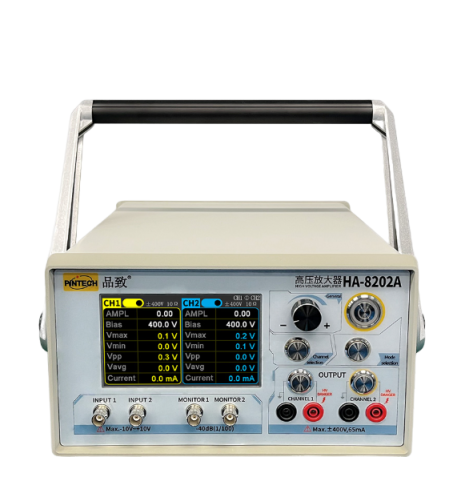

Pintech HA-8202A Dual-channel digital high-voltage amplifier (300kHz, 1600Vp-p)

Channel: 2-Each channel; Differential mode

Output Voltage( DC Max): 400V DC; 800V DC

Output Voltage(AC Max): 800Vp-p; 1600Vp-p

DC Current(Max): 65mA DC

AC Current(Max): 130mAp-p

Output Power(Max): 26VA; 52VA

Bandwidth: DC-300kHz(-3dB)

Slew Rate: 500V/μs; 1000V/μs

Output impedance: 5Ω; 10Ω

Protect resistor: 5kΩ/35watt; 10kΩ/70watt

Safe Loading: 6.15kΩ @range ±400V; 1.53kΩ @range ±100V

Input Voltage upper limit: -5V~+5V(Max -10V~+10V)

Monitor: 100:1; 200:1

Protection:

1. Output-specific FUSE

2. Output over-current protection

3. INPUT/OUTPUT input overvoltage protection

4. Over-temperature protection

Display range:

Maximum: ±400V

Minium: ±400V

Peak to peak: 0~800V

Bias voltage: ±400V

Output current: 0~65mA

Setting:

Magnification setting(AMPL): 0~100

Output offset setting: 0~±400V

Sync mode: Input by channel 1

Differential mode: Input by channel 1
