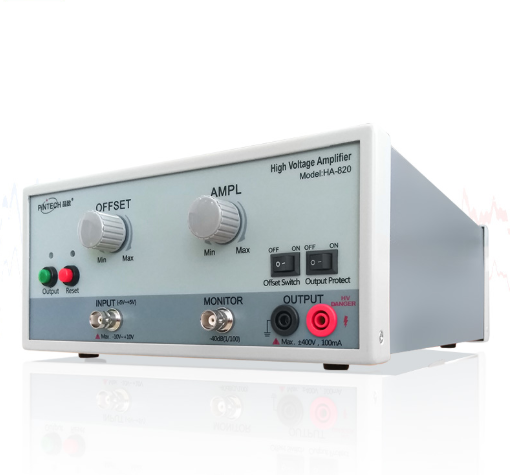

Pintech HA-820 High Voltage Amplifier (200kHz, 800Vp-p)

Output Voltage( DC Max): 400V DC

Output Voltage(AC Max): 800Vp-p

DC Current(Max): 100mA

AC Current(Max): 200mAp-p

Output Power(Max): 40VA

Frequency response (Bandwidth): 200kHz/400Vp-p

Slew Rate: 300V/μs

Output impedance: 100Ω

Protect resistor: 5kΩ/35watt

Safe Loading: ≧4kΩ/800Vp-p

Input Voltage upper limit: -5V~+5V(Max -10V~+10V)

AMPL: 100

OFFEST: ± 400V

Monitor: 100:1

Output protection:

1. Output dedicated FUSE

2. Protection SW (switch)

3. Microcomputer controls the overload protection circuit

Weight: 5.4kg

size: 320*260*150g
