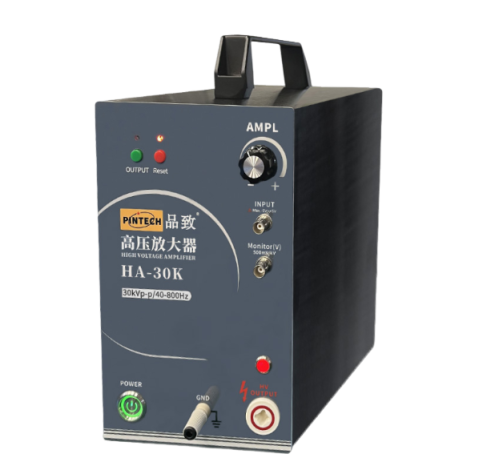

Pintech HA-30K High Voltage Amplifier (40-800Hz, 30kVp-p)
ManufacturerPintech(View more products from this manufacturer)
ModelHA-30K
USD 6,826.80
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Output Voltage(AC Max): 30kVp-p
AC Current(Max): 15mAp-p
Output Power(Max): 110VA
Frequency response (Bandwidth): 40-800Hz(AC)
Slew Rate: 50V/μs
Output impedance: 50Ω
Input Voltage upper limit: -5V~+5V(Max -10V~+10V)
AMPL: 3000
Monitor: 2000:1
Output protection:
1. Built-in over-voltage protection function
2. Built-in short-circuit protection/over-temperature protection/over-current protection
Weight: 9.85kg
size: 160x263x332mm
