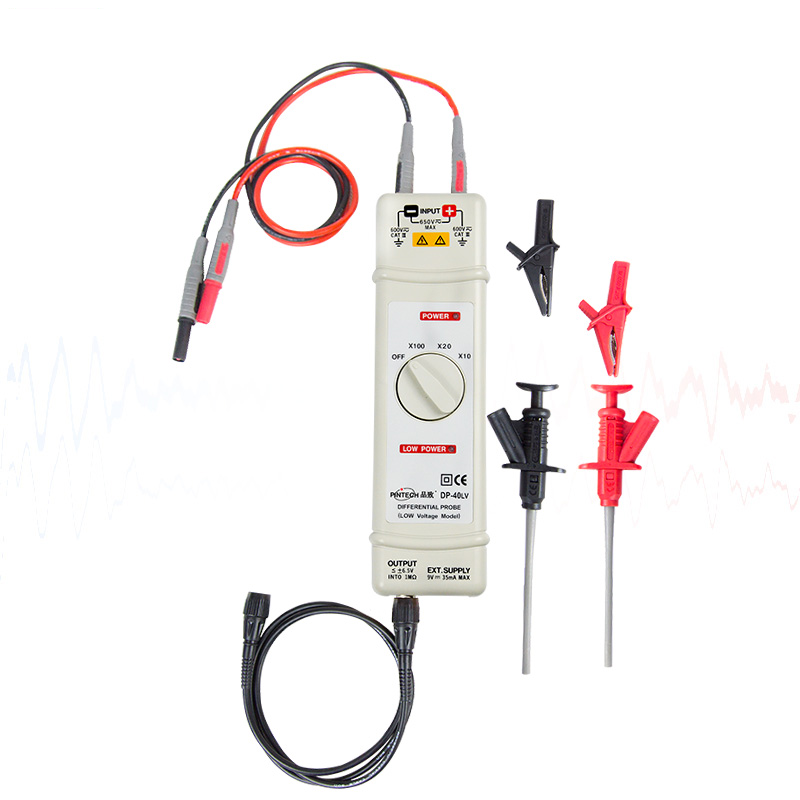

Pintech DP-40LV Differential probe (40MHz, 650Vp-p)
ManufacturerPintech(View more products from this manufacturer)
ModelDP-40LV
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Bandwidth(-3dB): DC-40MHz
Rise time: 9ns
Attenuation Ratio: 10X,20X,100X
Accuracy: ±2% (20 minutes after the warm-up)
Testing Vp-p: 65V-130V-650V
Input DC Voltage: 32.5V-62V-325V
AC rms: 230Vrms
CMRR (Typical): 60Hz:＞82dB；100Hz:＞62dB;1MHz:＞52dB
Input impedance: 2MΩ//1.7pF
Oscilloscope input impedance: 1MΩ
Power: External 9V DC power supply
Max. consumption: 35mA
Temperature and Humidity: 0~50℃ and 10~85%RH
Dimension (LxWxH) mm: 195x55x30
Weight: 250g
