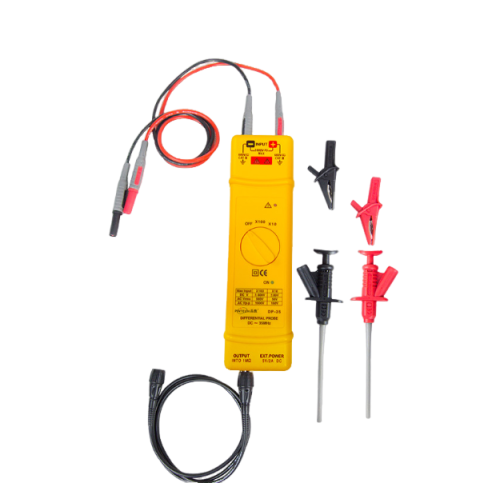

Pintech DP-35 Differential probe (35MHz, 1600Vp-p)
ManufacturerPintech(View more products from this manufacturer)
ModelDP-35
USD 606.00
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Bandwidth(-3dB): DC-35MHz
Rise time: 10ns
Attenuation Ratio: 10X,100X
Accuracy: ±2% (20 minutes after the warm-up)
Testing Vp-p: 160V-1600V
Input DC Voltage: 80V-800V
AC rms: 560Vrms
Tiếng ồn: ≤1.0mV rms
CMRR (Typical): 60Hz:＞80dB；100Hz:＞60dB;1MHz:＞50dB
Input impedance: 9MΩ//1.7pF
Oscilloscope input impedance: 1MΩ
Power: 9V adapter
Max. consumption: 200mA
Temperature and Humidity: 0~50℃ and 10~85%RH
Dimension (LxWxH) mm: 195x55x30
Weight: 250g
