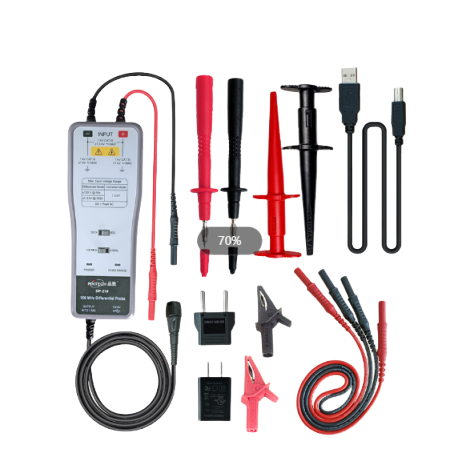

Pintech DP-210 Differential probe (100MHz, 2600Vp-p)
ManufacturerPintech(View more products from this manufacturer)
ModelDP-210
USD 834.00
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Bandwidth(-3dB): DC-100MHz
Rise time: 3.5ns
Attenuation Ratio: 50X,500X
Accuracy: ±2% (20 minutes after the warm-up)
Testing Vp-p: 260V-2600V
Input DC Voltage: 130V-1300V
AC rms: 919Vrms
CMRR (Typical): 60Hz:＞80dB；100Hz:＞60dB;1MHz:＞50dB
Input impedance: 10MΩ//1pF
Oscilloscope input impedance: 1MΩ
5MHz limited bandwidth: Switchable: Full/5MHz
Power: External 5V DC power supply
Max. consumption: 300mA
Temperature and Humidity: 0~50℃ and 10~85%RH
Dimension (LxWxH) mm: 175x68x28
Weight: 285g
