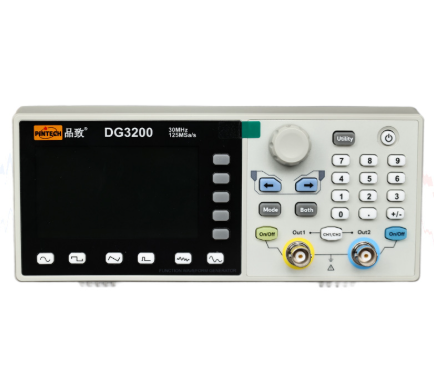

Pintech DG3200 Function Waveform Generator (Dual-channel, DC-30MHz)

Channel: Dual-channel(independent equivalent)

Bandwith: DC-30MHz

Real time sampling rate: 125 MSa/s

Waveform :

Standard waveform: sine,square,pulse,ramp,noise

Arbitrary Waveform: There are more than 160 kinds of Sinc, exponential rise, exponential fall, ECG, Gaussian, semi-sagittal, Lorentz, dual audio, and DC voltages

Frequency characteristics:

Sine wave: 1μHz-30MHz

Fang Bo: 1μHz ~ 15MHz

Pulse wave: 1μHz ~ 15MHz

Sawtooth wave: 1μHz ~ 1MHz

noise: 20MHz (Gaussian white noise )

Arbitrary Wave: 1μHz ~10MHz

Stability: ±30ppm, 0°C - 40°C

Input/output:

Display: 3.6-inch color LCD display

Method: External modulation input, External trigger input, Synchronous output

Standard Interface: USB Host, USB Device

Dimension (LxHxW): 220x92x157

Weight: 0.8kg
